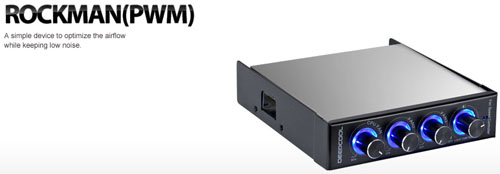

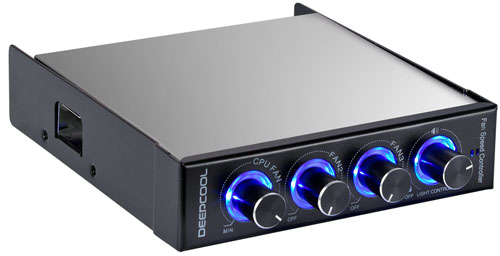

DeepCool RockMan CPU Fan Controller with PWM

DeepCool RockMan CPU Fan Controller with PWM
DeepCool RockMan CPU Fan Controller with PWM
Aim to adjust CPU fan and case fan speed for best cooling performance while keeping quiet operation. With PWM function. Control three fans individually and simutaneously.Adjust the built-in blue LED illumination effect to either On/Off or sound activated.CPU fan must be controlled by FAN1 to avoid any possible problem caused by over-low fan speed.
Price:  750
ONLINE PRICE::  P 650

Features



  • Aim to adjust CPU fan and case fan speed for best cooling performance while keeping quiet operation.
  • With PWM function.
  • Control three fans individually and simutaneously.
  • Adjust the built-in blue LED illumination effect to either On/Off or sound activated.
  • CPU fan must be controlled by FAN1 to avoid any possible problem caused by over-low fan speed.




Application For

Fan Control Panel for 5.25" Bay.

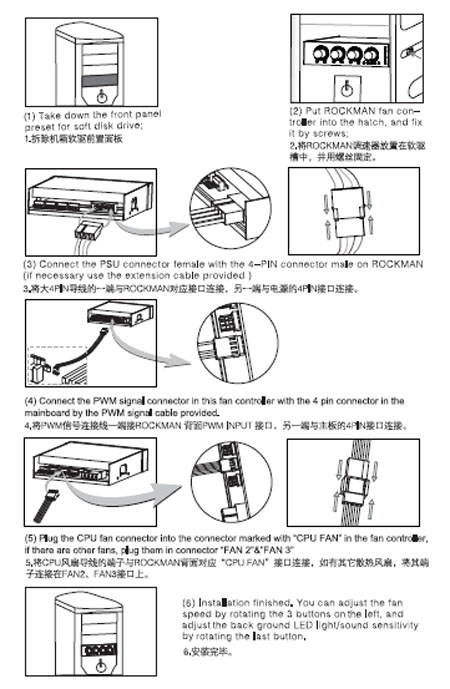

Installation Guide


Technical Specifications

Overall Dimension 102X110X25.5mm
Net Weight 201g
Quantity of regulated output 3
LED Color Blue
Rated Voltage 12V and 5 V
Operating Voltage 11~13V and 4~6V
regulated max Power output <30W
Voltage of Fan (12V) 6.5VDC~11.5VDC
Voltage of Fan (5V) 2.5VDC~4.5VDC
