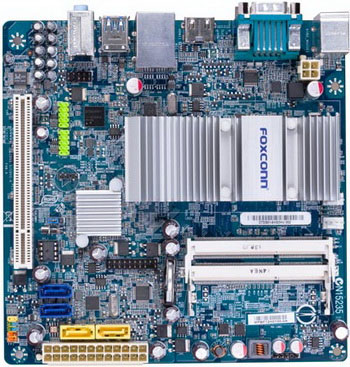

Foxconn D250S Intel D2500S Atom Dual Core CPU with Motherboard

Foxconn D250S Intel D2500S Atom Dual Core CPU with Motherboard
Foxconn
Foxconn D250S Intel D2500S Atom Dual Core CPU with Motherboard
Foxconn D250S motherboard with built-in dual-core processors Intel D2500 1.86GHz, 1MB Cache. It based on Micro-ITX platform Intel Atom, including South bridge NM10. Integrated graphics Intel HD with improved capabilities for working with high definition video, and HDMI.

Price:  3,599

ONLINE PRICE::  P 3,300

Asianic Online Cash Buyer Special at 3,300.

Free Downloads

Linux for Human Beings
LibreOffice.org
avast! Free Antivirus
Download Firefox — Free Web Browser
Use OpenOffice.org
0% Promo

Pay only P 599 a Month for 6 months.

Or pay only P 320 a Month for 12 months.

  • 0% interest promo is available for locally issued credit cards
  • Card holder must transact inside an Asianic store to avail of the 0% promo

Features

With an low- power Dual Core processor [Intel®  AtomTM ] integrated, the D250S are designed for a range of new market segments which focus on low-cost Internet-focused machines.  With the Intel® NM10 chipset,the D250S enable simple, affordable nettops for emerging and mature markets. They are the best choice of simple device for web browsing, with a range of connectivity options including 5.1 channel HD audio, SATAII and USB2.0 - they are fully equipped for the corporate environment.

  • Cedarview-D,Dual core CPU D2500, low power processor
  • Intel® NM10
  • Integrated Inte® HD Graphics with VGA and HDMI
  • Supports 2x SO-DIMM of DDRIII SDRAM, 1066MHz, Max 4G
  • 5.1 channel audio and GbeLan
  • Foxconn presented D250S motherboard with built-in dual-core processors Intel D2500.  These products are based on Micro-ITX platform Intel Atom, including South bridge NM10 (TigerPoint). The configuration of D250S  includes integrated graphics Intel HD with improved capabilities for working with high definition video, and HDMI.   Microsoft DirectX 10.1 allows to play many popular games at medium quality settings.  In addition, D250S support multimedia technology OpenGL 3.0 and Blue Ray 2.0 Full HD-decode and also  the connection of two monitors. The model D250S has Eight USB 2.0 ports and two SATA 3 Gb / sec.  The motherboards support up to 4GB of DDR3-1066, installed in SO-DIMM slots.



    Technical Specifications

    Processor Cedarview-D,Dual core CPU D2500
    Chipset Intel® NM10
    Front Side Bus
    Memory Supports 2x SO-DIMM of DDRIII SDRAM, 1066MHz, Max 4G
    VGA on Die Integrated Inte® HD Graphics with VGA and HDMI
    Expansion Slots 1x PCI slot
    IDE N/A
    Serial ATA(SATA)/RAID 2x SATA2
    Audio 5.1 channel audio
    LAN Gbe Lan
    IEEE1394 N/A
    Back Panel I/O Ports 1x PS/2 KB/MS port
    1x VGA port
    1x HDMI port
    1x COM port
    1x RJ45 LAN jack
    1x Audio 3 jacks
    4x USB2.0 ports
    Internal I/O Connectors 1x ATX 24-Pin power connector
    1x 4-pin ATX 12V power connector
    1x 4-pin CPU FAN conn
    1x 4-pin system FAN conn
    1X Front pannel header
    1x Front Audio header
    1x Speaker header
    2x SATAII connectors
    2x USB 2.0 headers
    1x Intrusion Alarm header
    1x TPM header
    1x IR header
    BIOS Features 8MB flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI 2.0
    Support CD Drivers, Adobe Reader, SuperUtilities, Norton Internet Security
    Standards/Manageability PCI 2.3, USB2.0, DMI 2.5
    Special Features
    Form Factor Mini-ITX form factor 6.7x6.7 inch
    Essentials
    DMI
    2.5 GT/s
    Processor Number
    D2500
    # of Cores
    2
    # of Threads
    2
    Clock Speed
    1.86 GHz
    L2 Cache
    1 MB
    Instruction Set
    64-bit
    Instruction Set Extensions
    SSE2, SSE3, SSSE3
    Embedded Options Available
    No
    Supplemental SKU
    No
    Lithography
    32 nm
    Max TDP
    10 W
    VID Voltage Range
    0.91V -1.21V
    Memory Specifications
    Max Memory Size (dependent on memory type)
    4 GB
    Memory Types
    DDR3-800/1066
    # of Memory Channels
    1
    Max Memory Bandwidth
    6.4 GB/s
    Physical Address Extensions
    36-bit
    ECC Memory Supported
    No
    Graphics Specifications
    Integrated Graphics
    Yes
    Graphics Base Frequency
    400 MHz
    Dual Display Capable
    Yes
    # of Displays Supported
    2
    Expansion Options
    # of PCI Express Ports
    4
    I/O Specifications
    # of USB Ports
    8
    # of SATA Ports
    2
    Package Specifications
    TJUNCTION
    100 C
    Package Size
    22mm X 22mm
    Low Halogen Options Available
    See MDDS
    Advanced Technologies
    Intel® Turbo Boost Technology
    No
    Intel® vPro Technology
    No
    Intel® Hyper-Threading Technology
    No
    Intel® Virtualization Technology (VT-x)
    No
    Intel® Virtualization Technology for Directed I/O (VT-d)
    No
    Intel® 64
    Yes
    Enhanced Intel SpeedStep® Technology
    No
    Intel® Demand Based Switching
    No
    Intel® Active Management Technology
    No
    Intel® HD Audio Technology
    Yes
    Execute Disable Bit
    Yes
