KGuard SHA108-V2-H03 8 Channel with 8 CCD LED Camera Combo Kit

KGuard SHA108-V2-H03 8 Channel with 8 CCD LED Camera Combo Kit
KGuard
KGuard SHA108-V2-H03 8 Channel with 8 CCD LED Camera Combo Kit
8 Channel H.264 Standalone DVR + 8x CCD Cameras, Pentaplex operation: live view, record, playback, backup and network transmission, Easily connects to any LCD TV for additional viewing capabilities, High quality video CCD cameras with weatherproof housing, Night vision cameras allow you to see in complete darkness, Free Bundle Surveillance Software

Price:  31,995

Free Downloads

Linux for Human Beings
LibreOffice.org
avast! Free Antivirus
Download Firefox — Free Web Browser
Use OpenOffice.org
Installment Promo! Easy Monthly Payments.

Pay only P 3,012 a Month for 12 months.

Or pay only P 5,705 a Month for 6 months.

  • Installment promo is available for locally issued credit cards
  • Card holder must transact inside an Asianic store to avail of the installment

Features



  • Quick do-it-yourself installation
  • Remote web and smartphone monitoring (Symbian, Windows Mobile, iPhone, Blackberry & Android)
  • 8 Channel H.264 Standalone DVR + 8x CCD Cameras
  • Pentaplex operation: live view, record, playback, backup and network transmission
  • Easily connects to any LCD TV for additional viewing capabilities
  • High quality video CCD cameras with weatherproof housing
  • Night vision cameras allow you to see in complete darkness
  • Free Bundle Surveillance Software

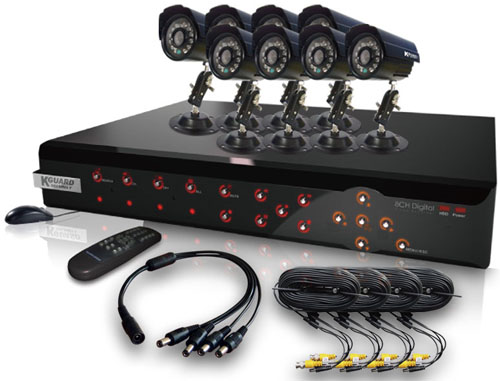

  • KGuard SHA108.V2-H02 Package Content

    DVR Accessories CCTV Camera kit
    • Power Cord x1
    • Power Adapter x1
    • Quick Installation Guide x1
    • Remote Control x1
    • USB Mouse x1
    • Software CD x1
    • BNC to RCA Cable x1
    • Camera x8
    • Adapter (12V2A) x2
    • Slim Cable (18M) x8
    • 4 Way Power Cable Splitter x2
    • Camera Bracket x8
    • Screw Set x8

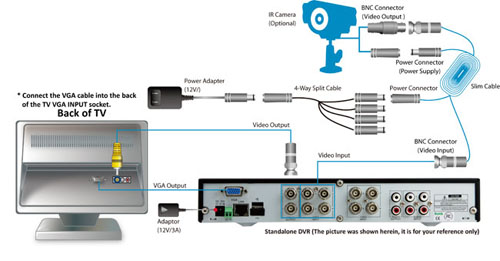

    How to Connect





    Technical Specifications


    H.264 Standalone DVR Specification

    Model

    SHA108.V2( 8CH )
    Video Compression H.264
    Video System NTSC / PAL
    Operation System Linux
    Video Input 8CH BNC
    Video Output VGA (1440 x 900) ; BNC x2
    Audio Input 4-channel
    Audio Output 2-channel
    Audio Compression 8kHz*16bit ADPCM
    Display Frame Rate NTSC 240fps
    PAL 200fps
    Playback Resolution NTSC CIF(352x240),Half D1(704x240), D1(704x480)
    PAL CIF(352x288),Half D1(704x288), D1(704x576)
    Recording Frame Rate NTSC 60fps@D1,120fps@Half D1, 240fps@CIF
    PAL 50fps@D1,100fps@Half D1,200fps@CIF
    HDD Support 1x SATA HDD, up to 2TB
    CD/ DVRW N/A
    Sensor & Alarm N/A
    Network Interface RJ45, 10M/100M
    Network Protocol Supports TCP/IP, DHCP,DDNS, PPPoE
    Network Function Supports live view with IE (Internet Explorer) & Smartphones
    USB2.0 USB mouse, USB disk (backup, upgrade)
    Local Playback 8CH simultaneously
    Backup Backup via USB flash disk, USB HDD disk, USB CD/DVD-RW & Network
    PTZ Control RS485 built-in, supports PELCO-P & PELCO-D
    Alarm Mode Motion Detection, Video loss, HDD loss, HDD full
    Power Supply DC 12V/3A
    Working Temperature 10 to 40 (50F to 104F)
    Dimension (WxDxH) 300*224*55mm
    Weight Approximately 2.9kg


    CCTV Camera Specification

    Image Sensor 1/4" SHARP CCD
    Effective Pixel PAL: 500(H)X582(V) ; NTSC:510(H)X492(V)
    Horizontal Resolution 420 TV Line
    IR Distance 10M
    IR LED 12 pcs
    Video Output 1.0Vp-p. 75ohm (BNC)
    SIN Ratio >48dB
    Min Illumination 0 LUX /F1.2
    Lens Mount 3.6mm Lens
    Electronic Shutter PAL: 1/50-1/100.000sec ; NTSC: 1/60-1/100.000sec
    Weather Proof IP66
    Operating Temp -10 ~ 50C
    Power Supply 12V DC, 200mA (IR ON)

    Remark:
    1. Recording capacity may vary, based on a 500GB hard drive, using the lowest recording quality settings with one camera.
    2. Internet and cell phone access require a router, Windows operating system, IE7 or higher and a broadband internet connection.
    3. The DVR is currently accessible on Windows Pro, Symbian and iPhone running on 3G networks
    4. Night vision range mentioned on specification is under ideal conditions. Objects at or beyond the range may be partially or completely obscured, depending on the camera position
    5. Do not recommend using the cameras in temperatures below 0 ℉(-17℃) or above 114 ℉(45.5℃)
    6. Do not recommend using the cameras in temperatures below 0 ℉(-17℃) or above 114 ℉(45.5℃)
    7. Audio Cameras not included.
