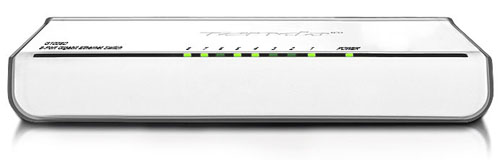

Tenda SG80 UnManaged 8 Port Gigabit Switch

Tenda SG80 UnManaged 8 Port Gigabit Switch
Tenda SG80 UnManaged 8 Port Gigabit Switch
Complies with IEEE 802.3x full-duplex and flow control, NMA auto-negotiation, Provides 8(SG80) auto-negotiation 10/100/1000Mbps LAN ports, Auto MDI/MDIX, Non-blocking, Store-and-forward switching, Integrated 8,000 MAC address table, Mini plastic shell design
Price:  1,299

Features

The SG80 8 port Gigabit switch, They support auto MDI/MDIX and store-and-forward switching. The SG80 has a 16Gbps backplane bandwidth. Design and functionality make these switches excellent for small offices or work groups in need of high transmission rates, or they can be use very effectively in connecting two slower departmental switches in a larger network.

  • Complies with IEEE 802.3x full-duplex and flow control
  • NMA auto-negotiation
  • Provides 8(SG80) auto-negotiation 10/100/1000Mbps LAN ports
  • Auto MDI/MDIX
  • Non-blocking
  • Store-and-forward switching
  • Integrated 8,000 MAC address table
  • Mini plastic shell design



Technical Specifications

Hardware Features
Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3 NWay Auto-negotiation
Interface 8 RJ45 Ports
Speed 1000Mbps
LED POWER/LAN
Power AC100-240V 50/60Hz
DC9V 600mA
Dimensions (LxWxH,mm) 139.95*90.12*31.7
General Features
Forwarding Scheme Store-&-forward
MAC Address Table 8K
MAC Address Learning Yes
Backplane Bandwidth 16Gbps
Others
Operating Enviroment Operating Temperature 0oC~45oC
Storage Temperature -40oC~70oC
Operating Humidity 10%~95% RH non-condensing
Storage Humidity 5%~95% RH non-condensing
Package Contents SG80 8-Port Gigabit Ethernet Switch
One Power Adapter
One User Guide
Certificates FCC/CE/RoHS
