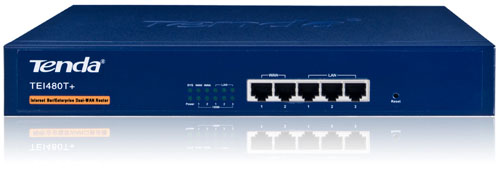

Tenda TEI480+ Load Balance Router

Tenda TEI480+ Load Balance Router
Tenda
Tenda TEI480+ Load Balance Router
Adopts Intel IXP network processor with up to 266MHz main frequency and multi-CPU distributed architecture, Complies with IEEE 802.3、IEEE 802.3u standards, Supports TCP/IP、PPPoE、DHCP、ICMP、NAT、SNTP、DNS、TFTP、ARP, Provides two 10/100M WAN ports and three 10/100M LAN ports, Supports Load Balancing and backups connections automatically for each other

Price:  3,500

Free Downloads

Linux for Human Beings
LibreOffice.org
avast! Free Antivirus
Download Firefox — Free Web Browser
Use OpenOffice.org
Installment Promo! Easy Monthly Payments.

Pay only P 329 a Month for 12 months.

Or pay only P 624 a Month for 6 months.

  • Installment promo is available for locally issued credit cards
  • Card holder must transact inside an Asianic store to avail of the installment

Features

TEI480T+
Connection Type PPPoE Dial-up
Dynamic IP
Static IP
Running Status WAN Status
LAN Status
Information
Advanced Setting LAN Setting
MAC Address Clone
DNS Setting
Router Access Limitation
WAN Setting
WAN Parameter
DHCP Server DHCP Server Setting
DHCP Client List
Static Address Assignment
Dual-WAN Port Setting Dual-WAN Port Setting
Routing Policy
Cable Diagnosis
Virtual Server Virtual Server
UPnP Setting
UPnP Mapping Table
DMZ Host
NAT Peer to Peer
Security Client Filtering
URL Filtering
MAC Address Filtering
External IP Filtering
ARP Defense
Anti-attack
WAN口Ping
Bandwidth Control QoS Setting
QoS Rule
NAT NAT
IP and MAC Binding IP and MAC Binding
Flow Statistics Flow Statistics

Switch part setting
Port Statistics
Port Mirroring
Flow Control
Port Parameters
Port State
Port-based VLAN
Routing Routing Table
Static Routing
System Tools
88IP
Time Setting
Remote WEB Management
Backup/Restore
Dynamic DNS
Firmware Upgrade
Restore to Factory Default Setting
Reboot
Login Password Modification
Log Setting
Log Configuration
Log View
Logout Logout



  • Adopts Intel IXP network processor with up to 266MHz main frequency and multi-CPU distributed architecture
  • Complies with IEEE 802.3、IEEE 802.3u standards
  • Supports TCP/IP、PPPoE、DHCP、ICMP、NAT、SNTP、DNS、TFTP、ARP
  • Provides two 10/100M WAN ports and three 10/100M LAN ports
  • Supports Load Balancing and backups connections automatically for each other
  • Specifies priority channels according to source or destination IP addresses
  • Supports MAC address binding with IP address to prevent the network access of unauthorized clients
  • Supports Auto MDI/MDIX
  • Supports flow statistics
  • Supports the flow control based on IP address and TCP amount.
  • Supports port bandwidth control, port mirror and port-base VLAN for LAN ports
  • Supports IP address filtering, Domain Name filtering and MAC address filtering
  • Supports VPN Pass-through, Dynamic DNS, virtual server, DMZ host, UPnP.
  • Supports online firmware upgrade
  • Supports DoS anti-attack and isolates the infected computer automatically
  • Supports Remote and Web management
  • Provides system log for troubleshooting solution
  • Internal power supply and standard 19-inch rack-mountable steel case

Technical Specifications

Hardware Features
Standards IEEE 802.3, IEEE 802.3u
Interface 2 10/100M WAN Interfaces
3 10/100M Auto-negotiation LAN Interfaces
MAC Address Table 1K
Backplane Bandwidth 1Gbps
LED POWER, WAN, LAN, SYS, SPEED, LINK/ACT
Power AC100V-240V,50/60Hz
DC5V3A
Dimensions (LxWxH,mm) 280*180*44
Software Features
Internet Connection Type Dynamic/Static IP/PPPoE
DHCP DHCP server
Security Access control over protocol port, MAC, URL; IP-MAC address binding
IM filter; Domain name and MAC address filters
Site filter; network gaming and stock-related utility filter
ARP, floods, debris attack prevention
Bandwidth Control Bandwidth management and stand-alone speed limits
DDNS Yes
Others
Operating Enviroment Operating Temperature 0℃~45℃
Storage Temperature -40oC~70oC
Operating Humidity 10% ~ 95% RH non-condensing
Storage Humidity 5% ~ 95% RH non-condensing
Minimum System Requirement Computer with:
733MHz or higher processor
64MB or higher memory
Internet Explorer 5.5 or Firefox 1.0 Higher
Network Adapter
Package Contents One TEI480T+ Router
One Power Cord
One User Guide
Certificates FCC/CE/RoHS
