Tenda W268R 150Mbps Slim Design Wireless N Router

Tenda W268R 150Mbps Slim Design Wireless N Router

Tenda W268R is a 802.11n compliant wireless router that delivers up to 4x faster wireless speeds and 3x farther range than 802.11g while staying backward compatible with 802.11g/ b devices. Built-in Internal Antenna for secured connections. The W268R is ideal for sharing your Internet connection through out home or small office.

Availability: Phased Out

Feature

Tenda W268R 150Mbps Wireless N Router with Internal Antenna

The W268R is a Wireless-N router with a wireless AP function, a 4-port switch, and a built-in firewall. Transmission speed is approximately three times that of 802.11g products, while transmission rate is nearly doubled. Also, the WDS (Wireless Distribution System) supports the bridging of wireless routers in order to increase the wireless coverage area.

With features like an easy-to-use Tenda setup wizard, URL/MAC address filtering, and QoS (Quality of Service) bandwidth control over specific IPs, parents and network administrators will find managing the network a breeze. The W268R provides small offices and households a simple but effective solution for a safe and stable network with good speed.

Wireless AP, Router, 4-Port Switch, and Firewall

WPS (PBC and PIN) enabled device

Compliant to IEEE 802.11n, IEEE 802.11g, and IEEE 802.11b

Supports up to 3 times the transmission rate and double the range of 802.11g products

Meets 64/128-bit WEP, WPA, and WPA2 security standards

Setup wizard for fast and easy configurations

Provides one 10/100Mbps Auto-Negotiation Ethernet WAN port

Provides four 10/100Mbps Auto-Negotiation Ethernet LAN ports

Supports xDSL/cable modem static, dynamic, and PPPOE connections

Supports remote/local web management

Supports WMM for improved audio and video signals

Supports SSID stealth mode and a MAC address access control

Supports access control of up to 30 entries of MAC addresses

Supports Auto MDI/MDIX

Supports wireless roaming technology for highly efficient connections

Supports auto negotiation/manual mode for 802.11b/802.11g/802.11n

Supports UPnP and DDNS

Administration interface supports Firefox 1.0, IE5.5�or�above

Supports SNTP

Supports virtual server, DMZ host

Supports DHCP server/client

Supports wireless channel auto-selection

Supports LAN access control over Internet connection

Provides a router system log

Supports QoS bandwidth control

High-performance internal antenna

Technical Specifications

Hardware Features
Standards	IEEE802.11n/g/b IEEE802.3/3u
Band	2.4GHz
Wireless Rate	150Mbps

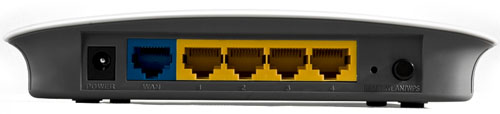

Interface & Speed	1 10/100Mbps auto-negotiation RJ45WAN Port 4 10/100Mbps auto-negotiation RJ45LAN Ports
Button	Reset

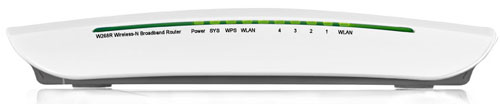

LED	POWER/SYS/WPS/WLAN/LAN/WAN
Antenna	Non-detachable internal antenna (2dBi)
Power	AC 110~240V DC 9V,1A
Dimensions (LxWxH,mm)	172mm�110.2mm�31mm
Wireless Features
Basic Features	Channel	11 Channels
	Channel Width	20Mhz, 40Mhz
	Transmit Power	20dbm
Working Modes	Router, wireless access point
Wireless Security	WEP , WPA , WPA2 ,WPA-PSK,WPA2-PSK
Software Features
Internet Connection Type	Dynamic/Static IP, PPPoE/PPTP/L2TP/802.1x
DHCP	DHCP Server
Security	MAC-based access control ,LAN access control; Port/URL/MAC address based filtelrs
Bandwidth Control	WMM
DDNS	Yes
Others
Operating Enviroment	Operating Temperature	0℃ ~ 40℃
	Storage Temperature	-40oC ~ 70oC
	Operating Humidity	10% ~ 90% RH non-condensing
	Storage Humidity	5% ~ 90% RH non-condensing
Minimum System Requirement	Computer with: Internet Explorer 5.5 or Firefox 1.0 Higher CD Drive Network Adapter
Package Contents	W268R Wireless-N Broadband Router Power Adapter Quick Installation Guide One Software CD (User Guide and Setup Wizard included)
Certificates	FCC CE RoHS
