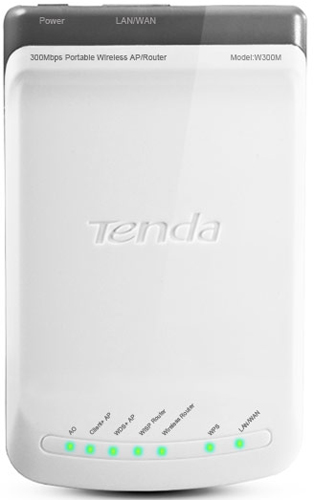

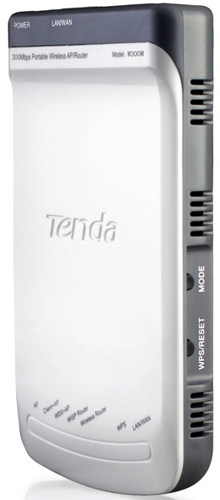

Tenda W300M 300Mbps Portable Traveller Wireless AP/Router
Availability: Phased Out
Features
The W300M is a compact 300Mbps Wireless-N router, wireless access point, and firewall all-in-one. In addition, the device can be powered by an alternative power supply through the USB port and comes with a travel bag, all making for a powerful yet convenient network that you can take out of your pocket and set up in a few minutes .
The W300M features MIMO technology to extend the transmission range to double that of 802.11g products improve signal strength and lessen dead spots. Other features of the W300M include; port and MAC address filters, WPS (Wi-Fi Protected Setup), the ability to disable SSID broadcast, and a Tenda-developed setup wizard that makes installation easy for all users.
The W300M is an excellent choice for people with always-moving network needs
in search of a fast, secure, easy-to-use, and feature-rich wireless network.
- Wireless AP, Router, and Firewall
- Complies with IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3, and IEEE 802.3u standards
- MIMO technology utilizes reflection signal to greatly increase the transmission strength and range
- Double the transmission range of 802.11g products
- Provides 300Mbps transmission rates

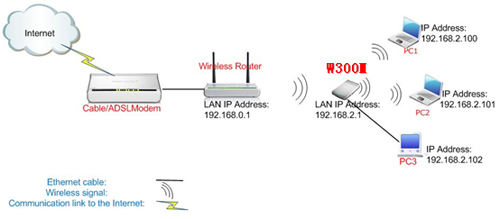

- Supported working modes: AP, Client+AP, WDS+AP, WISP, and wireless router
- Meets 64/128-bit WEP, WPA, and WPA2 security standards
- WPS (PBC and PIN) enabled device
- Setup wizard for fast and easy configurations
- Provides one 10/100Mbps Auto-Negotiation Ethernet LAN/WAN port
- Supports xDSL/cable modem static, dynamic, and PPPOE connections
- Supports remote/local web management
- Supports wireless roaming technology for highly efficient connections
- Supports SSID stealth mode and a MAC address access control
- Supports Auto MDI/MDIX
- Provides a router system log
- Supports auto negotiation/manual mode for 802.11b/802.11g/802.11n
- Supports UPnP and DDNS
- Supports LAN access control over Internet connection
- Supports virtual server, DMZ host
- Supports channel auto-selection
- Powered by either over USB port or power adapter
- Mini design
- Dual internal antennas
Technical Specifications
| Standards | 802.11n, 802.11g, 802.11b, 802.3, 802.3u | ||
| Ports | one 10/100Mbps Auto-Negotiation Ethernet port for LAN/WAN | ||
| one USB port | |||
| Frequency Range | 2.4GHz-2.4835Hz | ||
| Antenna | 3.5dBi | ||
| output power | 20dbm | ||
| Input Voltage Range | AC：100～240V；50/60Hz | ||
| Output Voltage Range | DC 5V/1A | ||
| Operating Temperature | 0℃ ~ 40℃ | ||
| Storage Temperature | -40oC ~ 70oC | ||
| Operating Humidity: | 10% ~ 90% RH non-condensing | ||
| Storage Humidity | 5% ~ 90% RH non-condensing | ||
| Certificates | FCC ,CE(Wireless), RoHS,WEEE | ||
| Wireless Security | WEP,WPA-PSK,WPA2-PSK | ||
| Dimensions | 103mm×63mm×18mm | ||
| Functions | remote/local Web management,UPnP,DDNS,LAN access control over Internet connection,MAC address -based access control,virtual server, DMZ host,Built-in firewall | ||
| Package Contents | W300M 300Mbps Portable Wireless
AP/Router Power Adapter Quick Installation Guide One Software CD (User Guide included) |
||
| Minimum Requirements | Internet Explorer 5.5 or Firefox 1.0
Higher Network Adapter |
||
