Tenda W368R 300Mbps Slim Design Wireless N Router

Tenda W368R 300Mbps Slim Design Wireless N Router
Tenda W368R 300Mbps Slim Design Wireless N Router

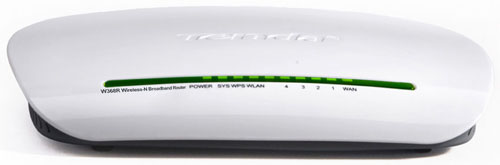

Tenda W368R is a 300mbps 802.11n compliant wireless router that delivers up to 8x faster wireless speeds and 6x farther range than 802.11g while staying backward compatible with 802.11g/ b devices. Built-in Internal Antenna for secured connections. The W368R is ideal for sharing your Internet connection through out home or small office.

Availability:  Phased Out

Free Downloads

Linux for Human Beings
avast! Free Antivirus
Download Firefox — Free Web Browser


Tenda W368R 300Mbps Wireless N Router with Internal Antenna

The W368R is a 300Mbps Wireless-N router, wireless access point, four-port switch, and firewall all-in-one.?

Utilizing advanced MIMO technology, WLAN range is double that of 802.11g products. The W330R also provides WDS (Wireless Distribution System), enabling the bridging of other wireless routers and extending wireless coverage.?

Plenty of features are bundled to better secure and manage a network, including; port and MAC address filters, WPS (Wi-Fi Protected Setup), QoS bandwidth control, and the ability to disable SSID broadcast.? Management from anywhere is conveniently accomplished through a web interface, and a Tenda-developed setup wizard makes installation easy for anyone.

The W368R is the ideal choice for small?or? home offices in search of a fast, secure, easy-to-use, and feature-rich wireless network.

  • Wireless AP, Router, 4-Port Switch, and Firewall
  • Provides up to 300Mbps transmission rates
  • WPS (PBC and PIN) enabled device
  • Complies with IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3, and IEEE 802.3u standards
  • MIMO technology utilizes reflection signal to greatly increase the transmission strength and range
  • Supports up to 6 times the transmission rate and double the range of 802.11g products
  • Meets 64/128-bit WEP, WPA, and WPA2 security standards
  • Setup wizard for fast and easy configurations
  • Supports RTS/CTS protocol and data partitioning
  • Provides one 10/100Mbps Auto-Negotiation Ethernet WAN port
  • Provides four 10/100Mbps Auto-Negotiation Ethernet LAN ports
  • Supports xDSL/cable modem static, dynamic, and PPPOE connections
  • Supports remote/local web management
  • Supports WMM for improved audio and video signals
  • Supports SSID stealth mode and a MAC address access control
  • Supports access control of up to 30 entries of MAC addresses
  • Supports Auto MDI/MDIX
  • Supports wireless roaming technology for highly efficient connections
  • Supports auto negotiation/manual mode for 802.11b/802.11g/802.11n
  • Supports UPnP and DDNS
  • Administration interface supports Firefox 1.0, IE 5.5orabove
  • Supports SNTP
  • Supports virtual server, DMZ host
  • Supports DHCP server/client
  • Supports wireless channel auto-selection
  • Supports LAN access control over Internet connection
  • Provides a router system log
  • Supports QoS bandwidth control
  • Dual internal antennas

  • Technical Specifications

    Hardware Features
    Standards 802.11n, 802.11g, 802.11b, 802.3, 802.3u
    Band 2.4Ghz
    Wireless Rate 300Mbps
    Interface & Speed 1 10/100Mbps Auto-Negotiation Ethernet WAN ports for WAN connection
    4 10/100Mbps Auto-Negotiation Ethernet LAN ports for LAN connections
    Button Reset
    Antenna 2*2dBi Non-detachable internal antenna
    Power AC 110~240V
    AC 9V,1A
    Dimensions (LxWxH,mm) 172mm110.2mm31mm
    Wireless Features
    Basic Features Channel 11 channels
    Channel Width 20Mhz, 40Mhz
    Transmit Power 20dbm
    Working Modes Wireless AP, Wireless Router
    Wireless Security WEP, WPA, WPA2,WPA-PSK,WPA2-PSK
    Software Features
    Internet Connection Type Dynamic/Static/PPPoE
    DHCP Built-in DHCP server
    Security Port/URL/MAC address filter
    Bandwidth Control WMM
    DDNS Yes
    Operating Enviroment Operating Temperature 0℃ ~ 40℃
    Storage Temperature -40oC ~ 70oC
    Operating Humidity 10% ~ 90% RH non-condensing
    Storage Humidity 5% ~ 90% RH non-condensing
    Minimum System Requirement Computer with:
    Internet Explorer 5.5 or Firefox 1.0 Higher
    CD Drive
    Network Adapter
    Package Contents W368R Wireless-N Broadband Router
    Power Adapter
    Quick Installation Guide
    One Software CD (User Guide and Setup Wizard included)
    Certificates FCC, CE, RoHS,
