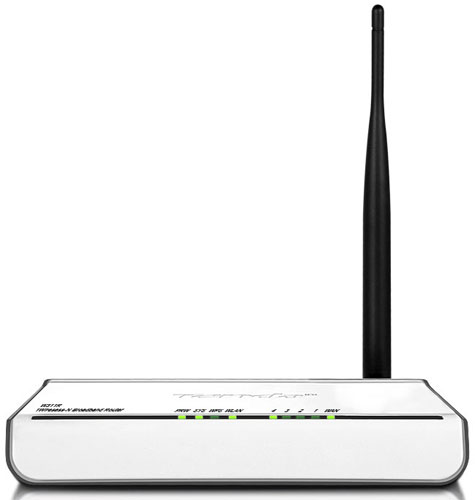

Tenda W316R 150Mbps WPS Wireless N Router

Tenda W316R 150Mbps WPS Wireless N Router
Tenda
Tenda W316R 150Mbps WPS Wireless N Router
W 316R is a 802.11n compliant wireless router that delivers up to 4x faster wireless speeds and 3x farther range than 802.11g while staying backward compatible with 802.11g/ b devices. Built-in WPS Button for fast Gaming station connections. The W316R is ideal for sharing your Internet connection throughout home or small office.

Availability:  Phased Out

Free Downloads

Linux for Human Beings
LibreOffice.org
avast! Free Antivirus
Download Firefox — Free Web Browser
Use OpenOffice.org

Features

Tenda WR316R is a 802.11n compliant wireless router that delivers up to 4x faster wireless speeds and 3x farther range than 802.11g while staying backward compatible with 802.11g/ b devices.

Upgrading your home network to 150Mbps of Wireless N speed, the W316R provides an excellent solution for experiencing better wireless performance while sharing a broadband Internet connection with multiple computers over a secure wireless network.

Powered by MIMO technology and equipped with one external 5dBi antennas, this router performs faster file transfers and farther coverage enabling greater wireless signals across your home. The W316R also includes a 4-port 10/100Mbps Ethernet switch for extra users

The W316R makes it easy to set up your wireless network in your home or office without professional installation. Thanks to the worlds most intuitive utility interface, it takes you to finish easily installing your wireless network and Internet connection in three steps. Once the setup process is complete, you can share a high-speed Internet connection, files, media, and more. Also, to prevent unauthorized access, it supports for WPA/WPA2 security standards ensure that you will be able to use the best possible encryption regardless of your other wireless devices.

The W316R is ideal for sharing your Internet connection throughout home or small office.


N Speed
Delivers up to 150Mbps wireless speed, 4X faster than ordinary wireless G devices

Share Internet Wirelessly
Allows Internet broadband sharing and the freedom of wireless Internet usage throughout your home/office

Enhanced Wireless Range
Deliver better wireless performance and faster file transfers based on 802.11n technology

Backward-Compatible
Backward-compatible with 802.11b/g devices , you can upgrade your network to the latest n at lower cost

Secured connection
Advanced WPA/WPA2 protects data and privacy. WPS enables you to quickly establish a secure network, eliminating complex encryption codes

Easy setup
World's most intuitive utility interface guides you to install a secured network in 3 steps

Intelligent QoS
Prioritizes both wired and wireless Internet traffic to bandwidth-sensitive applications like online gaming, VoIP or stream multimedia




Technical Specifications

Hardware Features
Standards 802.11n, 802.11g, 802.11b, 802.3, 802.3u
Band 2.4Ghz
Wireless Rate 150Mbps
Interface & Speed 1 10/100Mbps auto-negotiation Ethernet WAN Port
4 10/100Mbps auto-negotiation Ethernet LAN Ports
Button WPS/Reset
LED POWER/SYS/WPS/WLAN/LAN/WAN
Antenna 5dBi non-detachable antenna
Power 170-240 V
9V==600mA
Dimensions (LxWxH,mm) 159.6mm102.2mm31mm
Wireless Features
Basic Features Channel 11 channels
Channel Width 20Mhz, 40Mhz
Transmit Power b Mode:
1, 2, 5.5, 11Mbps : 17dbm, +0.5dbm/-0.5dbm
g Mode:
6, 9Mbps  : 16dbm,+0.5dbm, -0.5dbm
12, 18Mbps : 15.5dbm,+0.5dbm, -0.5dbm
24, 36Mbps : 15dbm,+0.5dbm, -0.5dbm
48, 54Mbps : 15dbm,+0.5dbm, -0.5dbm
n Mode:(20/40M Mode)
MCS0, 1_:7.2/15,  14.4/30 Mbps :16dbm,+0.5dbm, -0.5dbm
MCS2, 3_:21.7/45, 28.9/60 Mbps :15.5dbm,+0.5dbm, -0.5dbm
MCS4, 5_:43.3/90, 57.8/120 Mbps :15dbm,+0.5dbm, -0.5dbm
MCS6, 7_:65/135,  72.2/150 Mbps :15dbm,+0.5dbm, -0.5dbm
Working Modes Wirelss AP; WDS; Wireless Router
Wireless Security WPA-PSK,WPA2-PSK,WPA-PSK&WPA2-PSK
Software Features
Internet Connection Type Dynamic/Static/PPPoE/PPTP/L2TP
DHCP Built-in DHCP server
Security Port/URL/MAC address filter
Bandwidth Control WMM
DDNS Yes
Others
Operating Enviroment Operating Temperature 0℃ ~ 40℃
Storage Temperature -30oC ~ 70oC
Operating Humidity 10% ~ 90% RH non-condensing
Storage Humidity 10% ~ 90% RH non-condensing
Minimum System Requirement Computer with:
Internet Explorer 5.5 or Firefox 1.0 Higher
CD Drive
Network Adapter
Package Contents W316R Wireless-N Broadband Router
Power Adapter
Quick Installation Guide
One Software CD (User Guide and Setup Wizard included)
Certificates FCC CE RoHS
