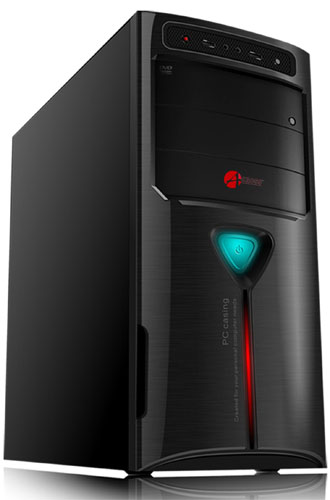

Across ACK-2578A Moldova Micro ATX Case
Across ACK-2578A Moldova Micro ATX Case
Thermally Advantaged Design - Optional front and rear cooling fan installed, Slot bracket with venting holes Options, Excellent EMI Solution - EMI shielding chassis edges, EMI shielding inner front panel Options, Safe Assembly - Folded edge for each part.
Availability: Phased Out
Features
Thermally Advantaged Design
Anti-rust treatment painting in the surface, matching Intel38℃
casing standard.

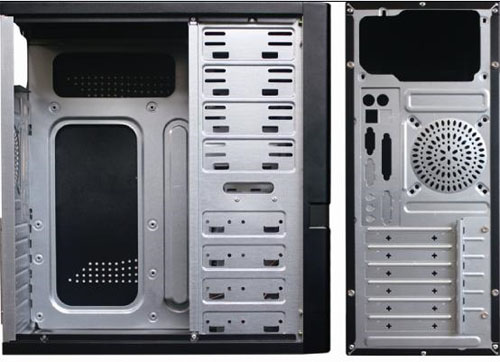

Case structure: support all Micro ATX mainboard
Front Panel Port: external USB and Audio port
Drive bay:external 3 x 5.25" Drive bays, internal 5 x 3.5" Drive bays,
and 6 PCI expansion slots
Coolingl features: 8cm fan optional in rear, Air guide optional,
Optimized cooling management measure up Intel 38℃ thermal requirement.
Excellent EMI Solution
EMI shielding chassis edges
EMI shielding inner front panel Options
Safe Assembly
Folded edge for each part for easy component installation.
Technical Specifications
Front USB port |
with |
Audio/Microphone jack |
with
|
Expansion slot |
6 |
Body size (LxWxH) (mm) |
380*175*408 |
Metal size |
3850*175*408 |
Carton size (LxWxH) (mm) |
460*210*445 |
Net weight (Kg) |
3.5 |
Gross weight (Kg) |
4.3 |
Structure |
30 A Series |
Material of case body |
0.5 MM SGCC |
Front Panel Painting |
Glossy Finish |
