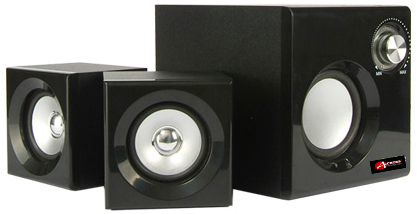

Across MD-3128D Compact Wooden Design Subwoofer Speaker
Across MD-3128D Compact Wooden Design Subwoofer Speaker
Amplifier configuration:Analog Amplifier, Amplifier SNR:?70dB, Amplifier output power:6W + 1W x 2, Total Harmonic Distortion + Noise:?1%, Frequency range:80HZ~20KHZ, Line input impedance:?20K?, Input Interface:3.5 Stereo plug, Output Interface:Direct Connect SpeakerAvailability: Phased Out
Features
- All wooden subwoofer;
- Anti-magnetic design;
- Simply style design, ingenious size to save desk space.
- Electroplating knob in transparent white with blue LED indicating Best Volume control
- Simply style design, ingenious size to save desk space
- Best Volume control
- Decorating& Surface:Vice-box high light the main black plastic panel
- The main case material, color and surface treatment: Using MDF wooden box,black PVC rough sand
- Vice-box material, color and surface treatment: Using MDF wooden box,balck PVC surface + black cloth net
Technical Specifications
| SUBWOODFER | |
| Amplifier Configuration | Analog Amplifier |
| Amplifier SNR: | ≥70dB |
| Total Harmonic Distortion + Noise: | ≤1% |
| Base unit: | 3" Wooden Structure |
| Line input impedance: | ≥20KΩ |
| Output Power: | 6W RMS |
| Input Interface: | 3.5 Stereo Plug |
| Output Interface: | Direct Connect Speaker |
| Dimensions(LxWxH) | Deep177 x W130 x H140mm |
| SATELLITES | |
| Power output | 1W RMS X 2 |
| Speaker type | 2.5 x2 |
| Frequency Response | 80Hz-20KHz |
| Speaker Impedance | 4Ω |
| External Structure | Wood |
| Dimensions(LxWxH) | Deep80 x W90 x H90mm |
| OTHERS | |
| Adjustment Method: | Total volume control potentiometer |
| PACKAGE | |
| Dimensions(LxWxH) | Deep245 x W135 x H196㎜ |
| Weight | 2.1kg |
