Deepcool Dracula 250W Best VGA Cooler

Deepcool Dracula 250W Best VGA Cooler

Retention bracket and backplate for the system case back panel;18 tall aluminum heatsinks for the video memory chips;9 low-profile aluminum heatsinks for video memory chips;6 narrow aluminum heatsinks for graphics card VRM components;A heatsink for AMD Radeon HD 6970/HD 6950 VRM;Steel backplate with insulating padding

Availability: Phased Out

Pay only P 581 a Month for 6 months.

Or pay only P 311 a Month for 12 months.

0% interest promo is available for locally issued credit cards
Card holder must transact inside an Asianic store to avail of the 0% promo

Features

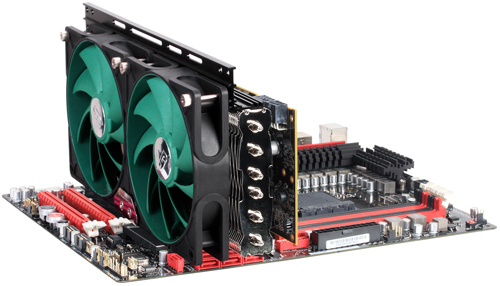

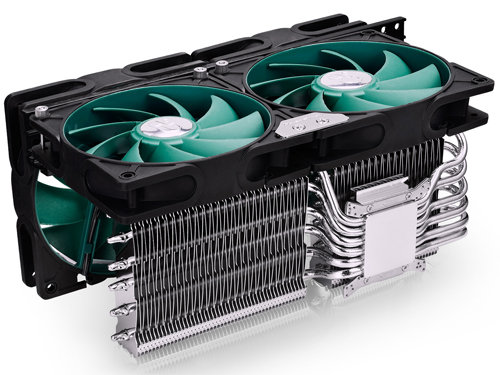

Dual Heatsink Design

As born from darkness, DRACULA is ready to suck the heat from your GPU. The dual heatsink design with two separate fans on the top can easily dissipate all the heat.

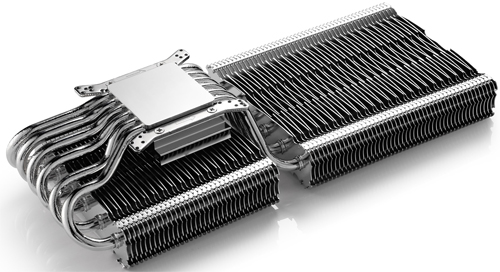

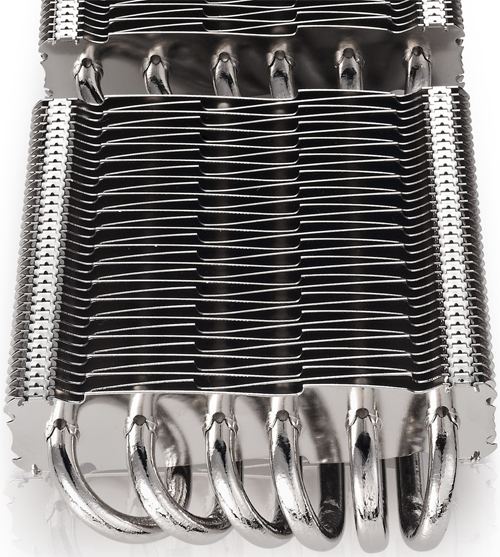

12 Piece of L-shaped Heatpipe

Designers make full use of the 12 pieces of L-shaped heatpipes to conduct heat from the GPU. The heatpipes are carefully twisted not only to avoid the conflicts with VGA card but also to get the most efficiency of conducting capability.

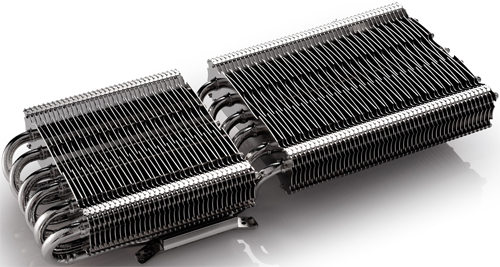

Shiny Silver Nickel Plating Heatsink

Zippered fin and soldering technology ensures the max cooling effectiveness from DRACULA. The whole body is shiny silver nickel plated for endurable lifespan and cold aesthetics. This also adds to the name of DRACULA.

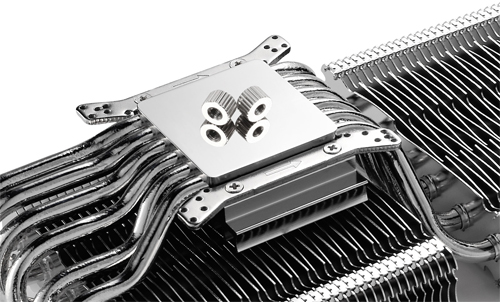

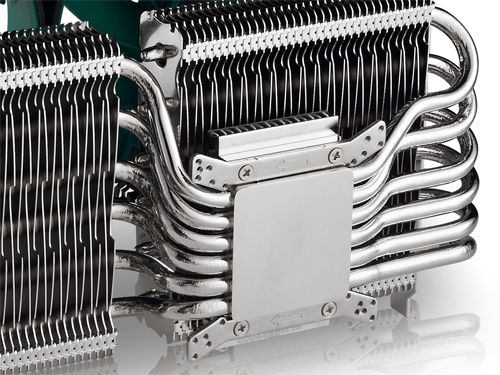

Mirror Finished Copper Base

For the quickest heat transfer, the copper base has been CNC machined to extremely flat, just like a mirror.

Additional Feature

3*14cm or 4*12cm fans can be mounted to DRACULA to build the top performance Video solution.

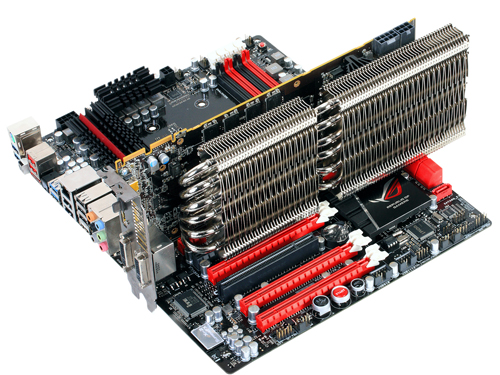

The heatsink can fully cover VGA card PCB board so as to cool every corner of the card.

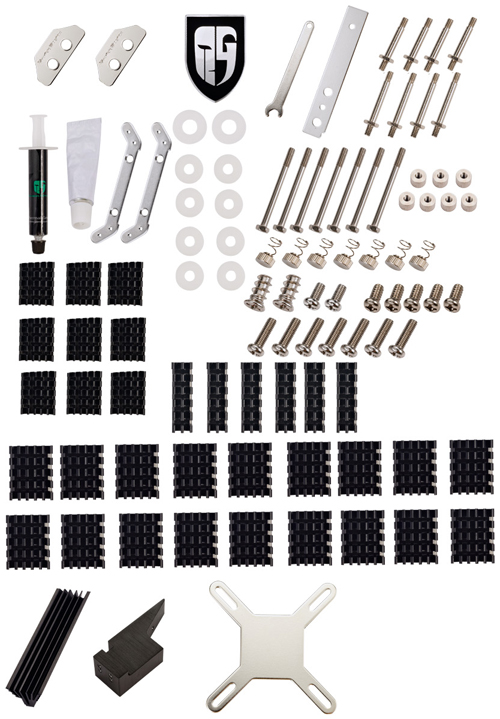

A full set of components is equipped to support various mounting holes. And a metal logo sticker is included for your DIY.

DRACULA is perfectly compatible with mainstream and incoming high-end VGA cards.

Application For

43mm Mounting holes

ATI Radeon HD 5770/5750/5670
ATI Radeon HD 2600 Series
ATI Radeon X1600 Series
NVIDIA Geforce 8600/8500/8400/7600/7400/7300 Series
NVIDIA Geforce 6600 Series(Except 6600 AGP Series)

51mm/61mm Mounting holes

NVIDIA Geforce GTX 200 Series

80mm Mounting holes

NVIDIA Geforce 7600 Series
NVIDIA Geforce 7400 Series

53mm Mounting holes

ATI Radeon HD 6950/6970/6850/6870/5870/5850/4870/4860/
4850/4830/4750/4670/4650/3870/3850/3690/3650/3450
ATI Radeon X1900 Series
NVIDIA Geforce GT 210/220/240
NVIDIA Geforce GTS 250
NVIDIA Geforce 9800 GTX+/GTX/GT
NVIDIA Geforce 9600 GT
NVIDIA Geforce 8800 GT/ GTS(G92)
NVIDIA Geforce 7900 GTX/GT/GS
NVIDIA Geforce 7800 GTX/GT
NVIDIA Geforce 6600 Series(Except 6600 AGP Series)

51-61mm Mounting holes

NVIDIA Geforce GTX 460
NVIDIA GTX 560

58mm Mounting holes

NVIDIA GTX 470/480
NVIDIA GTX 570/580
NVIDIA Geforce 8800 GTX
NVIDIA Geforce 8800 Ultra

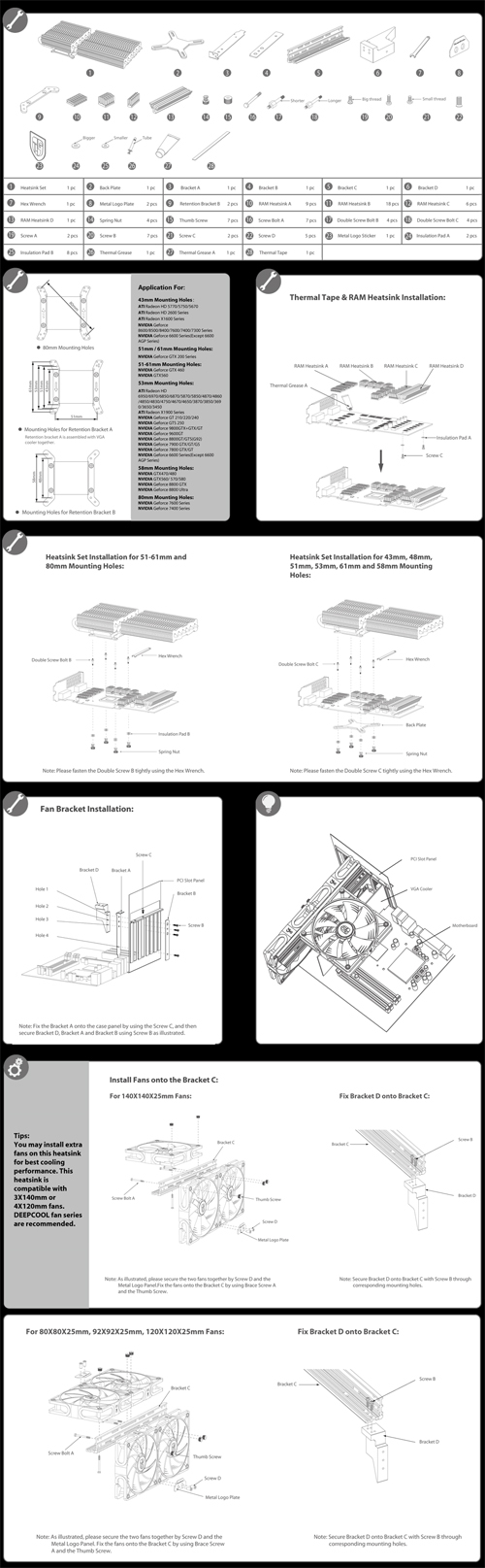

Installation

Technical Specifications

Heatsink Dimension	254X100X44mm
Suggested Fan Dimension	140X25mm/120X25mm
Heatsink Weight	556g
Net Weight	994g
Heatpipe	12X6mm
Suggested Fan Speed	600 - 1500 RPM
