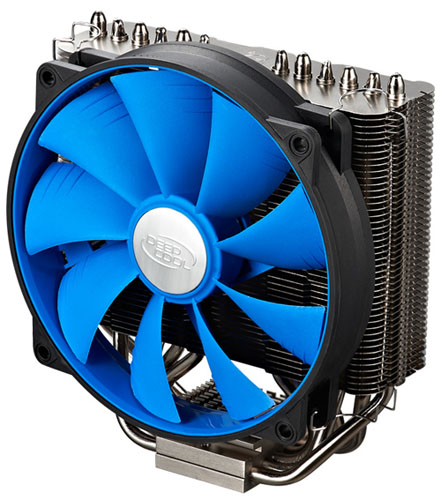

DeepCool Ice Matrix 600 6 HeatPipes Universal 150W CPU Cooler

DeepCool Ice Matrix 600 6 HeatPipes Universal 150W CPU Cooler
DeepCool Ice Matrix 600 6 HeatPipes Universal 150W CPU Cooler
Appealing appearance heatsink with a matrix design. Equipped with multiple clips to support Intel LGA1366/1155/1156/775 and AMD AM3/AM2+/AM2. 6 sintered powder heatpipes conduct heat from the processor quickly to protect it from overheating.140mm PWM fan with TPE cover fan frame to absorb operating vibration and noise maximumly.
Price:  2,000

Features

  • Equipped with multiple clips to support Intel LGA1366/1155/1156/775 and AMD AM3/AM2+/AM2.
  • 6 sintered powder heatpipes conduct heat from the processor quickly to protect it from overheating.

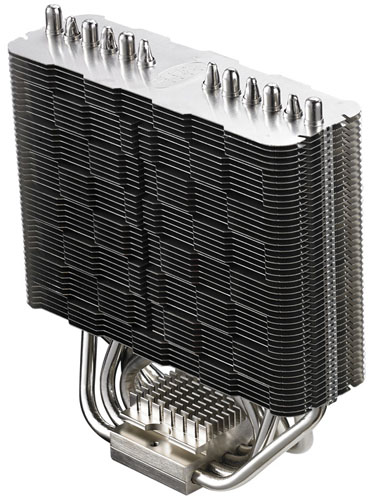

  • Heatpipes are lined up in a straight line to improve air flow through the heatsink.

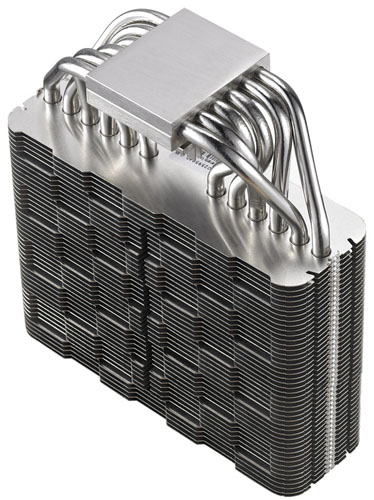

  • Nickle plated copper base gives perfect contact with the CPU surface.
  • Dense nickel plated aluminum fins with big surface dissipate heat efficiently.
  • 140mm PWM fan with TPE cover fan frame to absorb operating vibration and noise maximumly.
  • Intelligent side flow design further utilizes system airflow to improve computer case ventilation.
  • 150W solution, a perfect choice for overclockers.


Application For

Intel Socket 150W - LGA1366/LGA1155/LGA1156/LGA775

  • Core i7/i5/i3
  • Core 2 Extreme
  • Core 2 Quad
  • Core 2 Duo
  • Pentium/Pentium G
  • Pentium D/Pentium 4
  • Celeron Dual-Core
  • Celeron/Celeron D

AMD Socket 140W - AM3/AM2/AM2+

  • Phenom II X6/X4/X3/X2
  • Phenom X4/X3
  • Athlon II X4/X3/X2
  • Athlon X2
  • Athlon/Athlon FX
  • Business Class
  • Sempron




Product Dimension


Technical Specifications

Overall Dimension 140X73.5X169.5mm
Fan Dimension Ф140X25mm
Net Weight 1300g
Bearing Type Hydro Bearing
Rated Voltage 12VDC
Operating Voltage 10.8~13.2VDC
Started Voltage 7VDC
Rated Current 0.17±10%A(MAX)
Power Input 1.56W
FAN Speed 700±200~1200±10%RPM
MAX.Air Flow 71.8CFM
Noise 17.8~27.2dB(A)
