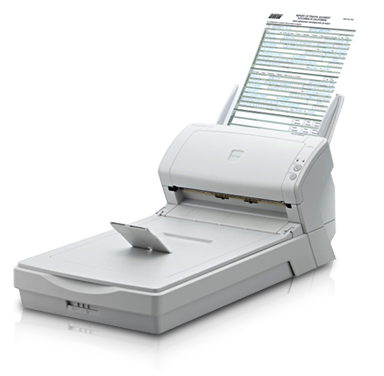

Fujitsu ScanPartner SP30F Image Scanner

Fujitsu ScanPartner SP30F Image Scanner
Fujitsu ScanPartner SP30F Image Scanner
ADF (Automatic Document Feeder) + Flatbed;Duplex scanning;Color, grayscale, monochrome, automatic, 30 ppm; 60ipm; Simplex & Duplex scanning; 150 dpi-600 dpi; 3,000 sheets/day, A4, A5, A6, B5, B6, Business card, Postcard, Letter, Legal and Custom sizes; Automatically recognizes document type by paper length, PaperStream IP (TWAIN) Driver, PaperStreamIP (TWAINX64) Driver, Paperstream IP (ISIS) Driver, Presto! Pagemanager, Abbyy Finereader Sprint

Price:  62,990

Installment Promo! Easy Monthly Payments.

Pay only P 5,931 a Month for 12 months.

Or pay only P 11,233 a Month for 6 months.

  • Installment promo is available for locally issued credit cards
  • Card holder must transact inside an Asianic store to avail of the installment


Equipped with the paper feeding mechanism of fi Series with cost effective high performance

  • Supports scanning a wide range of documents
    ScanPartner is equipped with straight path paper feeding mechanism for reliable scanning and high precision separation mechanism using brake rollers. This means ScanPartner is able to scan a wide range of documents including non-standard documents, such as thin documents (41g/m2 or above) and plastic cards (up to 1.4mm in thickness). Using the flatbed of SP30F, bound books or pamphlets can be scanned easily.
  • High speed and reliable scanning when scanning large volume or mixed batch of documents
    The ScanPartner SP30F is able to scan A4 documents at an impressive 30ppm (color, duplex, 200/300dpi). To further improve work efficiency, it is also armed with ultrasonic sensor to detect multi-feed to ensure reliable scanning even when scanning large volume or mixed batch of documents.

Bundled with ready-to-use software

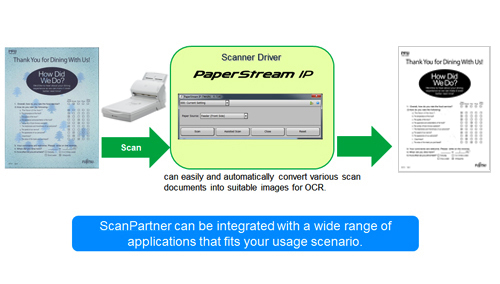

  • PaperStream IP – Scanner Driver
    The ScanPartner is equipped with automated functions such as auto size recognition and blank page removal to simplify scanning operations and pre-scan sorting. In addition, the image can be automatically converted into B & W image which is optimized OCR (Optical Character Recognition). To this end, the scanner can be integrated with a wide range of applications that fits any usage scenario.

    Paperstream IP - Scanner Driver

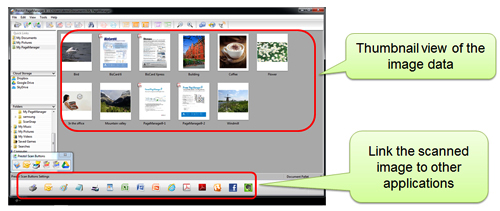

  • Presto!™ PageManager™ – Image data management/editing application developed by NewSoft Technology Corp.
    This software allows user to save image data in various format and add password to the PDF file for managing and editing scanned data easily.

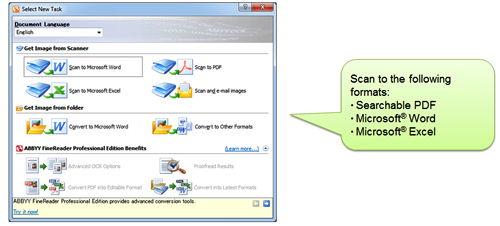

  • ABBYY™ FineReader™ Sprint – OCR application developed by ABBYY Software Ltd.
    This software can convert scanned images into text documents, such as searchable PDF or Microsoft® Word file to be utilized for other work tasks.


The scanner can be integrated with a wide range of applications that fits any usage scenario.

  • Supports TWAIN/ISIS™, the industry’s standard, for development environment to integrate various applications
    PaperStream IP is equipped with industry’s standard, TWAIN/ISIS™, to help to integrate various user’s applications for efficient scanning.
  • Facilitate application development by using the original application development kit – SDK
    The ScanPartner comes with “Scanner Control SDK for ScanPartner” to allow users to scan easily using own work system/application. SDK can be integrated to a wide range of work system/applications to fit user’s demand.
Technical Specifications:
ModelsScanPartner SP30F
Supported operating systemsWindows® 8 / 8.1 (32-bit / 64-bit), Windows® 7 (32-bit / 64-bit), Windows Vista® (32-bit / 64-bit), Windows® XP (32-bit / 64-bit), Windows Server® 2012 [1], Windows Server® 2008 (32-bit / 64-bit)[1]
Scanner TypeADF (Automatic Document Feeder) + Flatbed
Scanning modesSimplex / Duplex, Color / Grayscale / Monochrome
Image Sensor TypeColor CCD (Charge-Coupled device) x 3 (Front x 1, Back x 1, Flatbed x1)
Light SourceWhite Cold Cathode Discharge Lamp x 3 (Front x 1, Back x 1, Flatbed x 1)
Multi-feed detectionUltrasonic multi-feed detection sensor x 1
Document sizeADF Maximum[2]A4 Portrait: 210 mm x 297 mm
Legal: 216 mm x 355.6 mm (8.5 in. x 14 in.)
ADF MinimumA8: 52 mm x 74 mm (2 in. x 3 in.)
Long document
216 mm x 863 mm (8.5 in. x 34 in.), or 210 mm x 3,048 mm (8.27 in. x 120 in.)
Flatbed MaximumMaximum: 216 mm x 297 mm (8.5 in. x 11.69 in.)
ADF Feeding Paper Weight (Thickness)41 g/m2 to 209 g/m2 (11 lb to 56.2 lb)
and only supports 127 g/m2 to 209 g/m2 (34 lb to 56.2 lb) for A8 size.
Plastic card types (ADF): Portrait / Landscape, 1.4 mm thickness or less [4]
Scanning speed
(A4, Portrait) [5]
ADFColor [6]Simplex: 30 ppm (200 dpi / 300 dpi)
Duplex: 60 ipm (200 dpi / 300 dpi)
Grayscale [6]
FlatbedColor1.7 seconds (200 dpi)
ADF Capacity [7]50 sheets (A4: 80 g/m2 or 20 lb) (Active loadable ADF)
Expected daily volume3,000 sheets/day
Background colorsWhite
Optical Resolution600 dpi
Output Resolution[8]Color (24-bit)50 dpi to 600 dpi (adjustable by 1 dpi increments), 1200 dpi [9]
Grayscale (8-bit)
Monochrome (1-bit)
Output formatColor24-bit
Internal video processing1,024 levels (10-bit)
InterfaceUSB2.0 / USB1.1
Connector shapeB type
Image processing functionHardware or DriverDropout color (R, G, B)
DriverDeskew & Cropping, Image Emphasis, Error diffusion, Dither, iDTC, Simplified DTC, Smoothing, Dropout color (None, Specified, White, Color Saturation), Multi-image, Blank page skip, Advanced-DTC, sRGB, Auto color detection, Upper lower separation, Vertical Streaks Reduction, Digital-Endorser, Edge Filler
Power requirementAC 100 V to 240 V ± 10%
Power consumptionDuring operation45 W or less
Power saving mode2.2 W or less
Power OFF0.35 W or less
Operating environmentTemperature5 deg. to 35 deg. (42 deg. F to 95 deg. F)
Relative humidity20 % to 80 % (Non-condensing)
Dimensions: Width x Depth x Height[10]301 mm x 567 mm x 229 mm (11.9 in. x 22.4 in. x 9.0 in.)
Installation space: 400 mm x 800 mm x 450 mm (15.8 in. x 31.5 in. x 17.8 in.)
Weight8.8 kg (19.4 lb) or less
Bundled software / driversPaperStream IP (TWAIN) Driver, PaperStream IP (TWAIN x64) Driver, PaperStream IP (ISIS™) Driver, Presto!™ PageManager™, ABBYY™ FineReader™ Sprint
Environmental complianceENERGY STAR® and RoHS
Inbox ContentsADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM, Quick Installation Sheet, SAFE PRECAUTION
