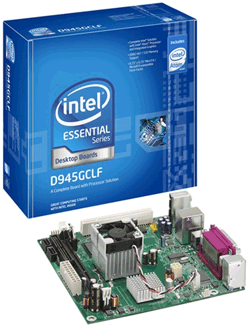

Intel BLKD945GCLF with Intel Atom 1.6GHz CPU
Intel BLKD945GCLF with Intel Atom 1.6GHz CPU
Intel� Desktop Board D945GCLF is designed to support Internet-centric computing delivering incredible capabilities for the new flexible Mini-ITX form factor. MINI-ITX/Micro ATX BUILT-IN Atom 230 1.6GHz CPU W/ AUDIO,VIDEO,LAN MOTHERBOARDAvailability: Phased Out
Features
The Intel Desktop Board D945GCLF is designed to support Internet-centric computing delivering incredible capabilities for the flexible Mini-ITX form factor. Featuring the integrated 45nm Intel Atom Processor and the Intel 945GC Express Chipset, this board is an energy-efficient solution for home users as well as for unique vertical market needs. Designed with Intel's leading edge 45nm Hi-k metal gate processor, this board delivers incredible opportunities to communicate, listen, watch, play, and learn via Internet connectivity.Technical Specifications
| General | |
|---|---|
| Product Type: | Motherboard |
| Form Factor: | Mini ITX / micro ATX |
| Width: | 6.7 in |
| Depth: | 6.7 in |
| Chipset Type: | Intel 945GC Express / Intel ICH7 |
| Max Bus Speed: | 533 MHz |
| BIOS Type: | Intel |
| Storage Controller: | ATA-100, Serial ATA-300 |
| Power Connectors: | 4-pin ATX12V connector, 20-pin main power connector |
| Processor | |
| Type: | Intel Atom |
| Installed Qty (Max Supported): | 1 ( 1 ) |
| Clock Speed: | 230 / 1.6 GHz |
| Data Bus Speed: | 533 MHz |
| Cache: | L2, 512 KB |
| Memory | |
| Supported RAM Technology: | DDR II SDRAM |
| RAM Installed ( Max ): | 0 MB / 2 GB (max) |
| Supported RAM Speed: | PC2-3200, PC2-4300, PC2-6400, PC2-5300 |
| RAM Features: | Unbuffered |
| Video | |
| Graphics Controller: | Intel GMA 950 |
| Video Memory: | Dynamic Video Memory Technology 3.0 |
| Video Memory Installed ( Max ): | / 224 MB (max) |
| Audio | |
| Audio Output: | Sound card |
| Audio Codec: | Realtek ALC662 |
| Sound Output Mode: | Stereo |
| Compliant Standards: | High Definition Audio |
| Telecom / Networking | |
| Networking: | Network adapter, Ethernet, Fast Ethernet |
| Features | |
| BIOS Features: | ACPI support, rapid BIOS boot, SMBIOS support |
| Hardware Monitoring: | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage |
| Sleep / Wake Up: | Keyboard wake up, mouse wake up, wake on PCI device, wake on USB port |
| Expansion / Connectivity | |
| Expansion Slot(s): | 1 memory ( 1.8 V ), DIMM 240-pin , 1 PCI |
| Storage Interfaces: | Serial ATA-300, connector(s): 4 x 7pin Serial ATA, 2 device(s) , ATA-100, connector(s): 1 x 40pin IDC, 1 device(s) |
| Interfaces: | 4 x Hi-Speed USB, 4 pin USB Type A , 1 x serial, RS-232, 9 pin D-Sub (DB-9) , 1 x parallel, IEEE 1284 (EPP/ECP), 25 pin D-Sub (DB-25) , 1 x display / video, VGA, 15 pin HD D-Sub (HD-15) , 1 x m |
| Additional Connectors (Optional): | 2 x Hi-Speed USB |
| Miscellaneous | |
| Cables Included: | 1 x IDE cable , 1 x Serial ATA cable |
| Software Included: | Intel Express Installer |
| Package Type: | Bulk |
