Intel DH61HO Micro ATX Desktop Motherboard

Intel DH61HO Micro ATX Desktop Motherboard

Designed to support 2nd and 3rd generation Intelï¿½ Coreï¿½ processors in the LGA1155 socket and offered in the micro-ATX form factor, it is populated with a PCI *Express 3.0* x16 slot, 2 DIMMs slots for DDR3 memory, and VGA display capabilities. The Intelï¿½ Turbo Boost Technology 2.0 and enhanced Intelï¿½ Hyper-Threading Technology.

Availability: Phased Out

Features

Explore the great multitasking performance of the Intel® Desktop Board DH61HO. Designed with affordability in mind to support 2^nd and 3^rd generation Intel® Core™ processors in the LGA1155 socket and offered in the micro-ATX form factor, it is populated with a PCI *Express 3.0* x16 slot, 2 DIMMs slots for DDR3 memory, and VGA display capabilities allowing you to build a feature-rich system with expansion capabilities. The Intel® Turbo Boost Technology 2.0 and enhanced Intel® Hyper-Threading Technology, provides smarter performance and a seamless visual experience.

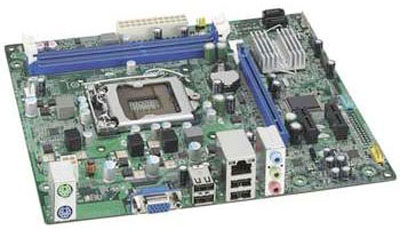

The diagram below identifies the major components of the Intel® Desktop Board DH61HO.

Label	Description
A	PCI Express* 2.0 x1 bus add-in card connector
B	PCI Express* 2.0 x1 bus add-in card connector
C	PCI Express* 3.0 x16 bus add-in card connector
D	Rear chassis fan header
E	Back panel connectors
F	12V processor core voltage connector (2 X 2)
G	LGA1155 processor socket
H	Processor fan header
I	DIMM 1 (Channel A DIMM 1)
J	DIMM 2 (Channel B DIMM 1)
K	Main power connector (2 x 12)
L	Battery
M	BIOS setup configuration jumper block
N	SATA connectors
O	Front panel header
P	Front panel USB 2.0 header
Q	Intel® H61 Express Chipset
R	Front panel USB 2.0 header
S	Serial port header
T	Front panel audio header

Technical Specifications

Form factor	Micro-ATX
BIOS ID string	HOH6111H.86A
Processor	At product launch, this desktop board supports: Intel® Core™ i7 processor series in an LGA1155 socket with a 65W TDP Intel® Core™ i5 processor series in an LGA1155 socket with a 65W TDP Intel® Core™ i3 processor series in an LGA1155 socket View all compatible Intel® processor numbers
Memory	Two 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets Support for DDR3 1333 /1066 MHz DIMMs Support for up to 16 GB¹ of system memory
Chipset	Intel® H61 Express Chipset
Display	VGA connector for processors with Intel® HD Graphics
-	Intel® High Definition Audio² subsystem in the following configuration: 6-channel audio subsystem with three analog audio outputs.
LAN support	Gigabit Ethernet controller
Peripheral interfaces	Eight USB 2.0 ports (4 external ports, 4 via internal headers) Two Serial ATA ports Two PS/2 ports One Serial Header
Expansion capabilities	One PCI Express* 3.0 x16 bus add-in card connectors Two PCI Express* x1 connectors
