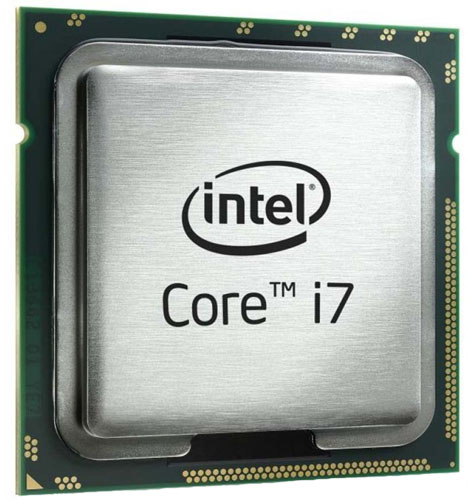

Intel Core i7-3820 3.6GHz Quad Core MicroProcessor
Intel Core i7-3820 3.6GHz Quad Core MicroProcessor
The i7-3820 is a 32nm part with a 3.6GHz default clock and Turbo capabilities up to 3.9GHz. It features 10MB of L3 cache and a new beefed up quad-channel DDR3-1600 memory interface which is theoretically capable of 51.2GB/s of bandwidth.Availability: Phased Out
Pay only P 1,412 a Month for 12 months.
Or pay only P 2,674 a Month for 6 months.
- Installment promo is available for locally issued credit cards
- Card holder must transact inside an Asianic store to avail of the installment
Features
The i7-3820 is a 32nm part with a 3.6GHz default clock and Turbo capabilities up to 3.9GHz. It features 10MB of L3 cache and a new beefed up quad-channel DDR3-1600 memory interface which is theoretically capable of 51.2GB/s of bandwidth. The integrated PCI-E controller has also been revamped and in coordination with the new X79 Express chipset can supply up to 40 PCI-E 2.0 lanes (with PCI-E 3.0 compatibility) to the PEG slots.
Technical Specifications
| Essentials | |
|
Processor Number
|
i7-3820 |
|
# of Cores
|
4 |
|
# of Threads
|
8 |
|
Clock Speed
|
3.6 GHz |
|
Max Turbo Frequency
|
3.8 GHz |
|
Intel® Smart Cache
|
10 MB |
|
Bus/Core Ratio
|
44 |
|
DMI
|
5 GT/s |
|
Instruction Set
|
64-bit |
|
Instruction Set Extensions
|
SSE4.2, AVX |
|
Embedded Options Available
|
No |
|
Lithography
|
32 nm |
|
Max TDP
|
130 W |
|
VID Voltage Range
|
0.600V – 1.350V |
| Memory Specifications | |
|
Max Memory Size (dependent on memory type)
|
64 GB |
|
Memory Types
|
DDR3-1066/1333/1600 |
|
# of Memory Channels
|
4 |
|
Max Memory Bandwidth
|
51.2 GB/s |
|
ECC Memory Supported
|
No |
| Graphics Specifications | |
|
Integrated Graphics
|
|
| Expansion Options | |
|
PCI Express Revision
|
2.0 |
|
# of PCI Express Ports
|
10 |
| Package Specifications | |
|
Max CPU Configuration
|
1 |
|
TCASE
|
66.8°C |
|
Package Size
|
52.5mm x 45.0mm |
|
Sockets Supported
|
FCLGA2011 |
|
Low Halogen Options Available
|
See MDDS |
| Advanced Technologies | |
|
Intel® Turbo Boost Technology
|
2.0 |
|
Intel® Hyper-Threading Technology
|
Yes |
|
Intel® Virtualization Technology (VT-x)
|
Yes |
|
Intel® Virtualization Technology for
Directed I/O (VT-d)
|
Yes |
|
Intel® Trusted Execution Technology
|
No |
|
AES New Instructions
|
Yes |
|
Intel® 64
|
Yes |
|
Idle States
|
Yes |
|
Enhanced Intel SpeedStep® Technology
|
Yes |
|
Thermal Monitoring Technologies
|
Yes |
|
Execute Disable Bit
|
Yes |
|
Intel® VT-x with Extended Page Tables (EPT)
|
Yes |
