KGuard SHA116-V2-H03 16 Channel with 8 CCD LED Camera Combo Kit

KGuard SHA116-V2-H03 16 Channel with 8 CCD LED Camera Combo Kit
KGuard SHA116-V2-H03 16 Channel with 8 CCD LED Camera Combo Kit

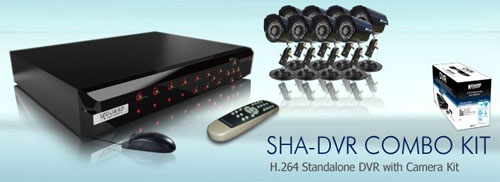

16 Channel H.264 Standalone DVR + 8x CCD Cameras, Pentaplex operation: live view, record, playback, backup and network transmission, Easily connects to any LCD TV for additional viewing capabilities, High quality video CCD cameras with weatherproof housing, Night vision cameras allow you to see in complete darkness, Free Bundle Surveillance Software
Price:  44,995

Installment Promo! Easy Monthly Payments.

Pay only P 4,237 a Month for 12 months.

Or pay only P 8,024 a Month for 6 months.

  • Installment promo is available for locally issued credit cards
  • Card holder must transact inside an Asianic store to avail of the installment


  • The KGuard CA116-H03 H.264

    surveillance kit is suitable for home, small or medium business environment. This all-in-one surveillance kit is equipped with 8 weatherproof cameras, one 16-Ch H.264 DVR and free surveillance software which supports remote site backup, E-map, event management, motion detection, IP camera hybrid system and more. The easy set-up and multiple viewing capabilities make it an economic choice for your surveillance need.



    H.264 DVR
    H.264 encoding has the advantage of higher image quality, lower bandwidth and storage requirement, especially suitable for digital video security.

    Smartphone Support
    Access live video footage directly from your Smartphone. The DVR can also be set to email your Smartphone whenever any specific activity occurs. (Supports Blackberry, iPhone, Symbian, Windows Mobile)

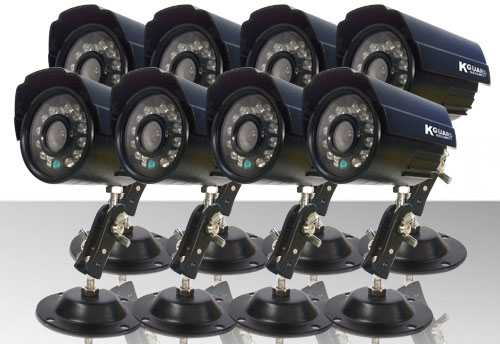

    CCTV Camera
    With built-in high intensity infrared LED, the CCTV cameras can provide clear video image up to 10m in the dark. The camera housing is also designed for weatherproof and with an integral rain hood / sunshade.


    Free bundle with CMS & NVR software
    The free surveillance software features are remote site backup, E-map, event management, motion detection, playback smart search and more.

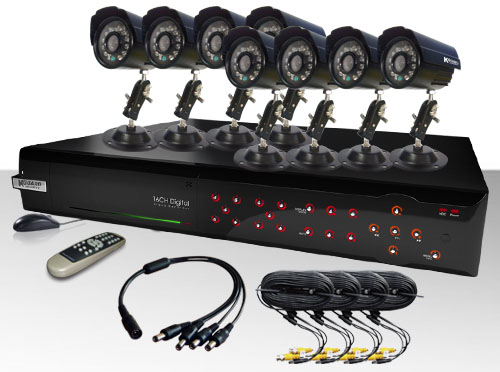

    KGuard SHA116.V2-H02 Package Content

    DVR Accessories CCTV Camera kit
    • Power Cord x1
    • Power Adapter x1
    • Quick Installation Guide x1
    • Remote Control x1
    • USB Mouse x1
    • Software CD x1
    •  BNC to RCA Cable x1
    • Camera x8
    • Adapter (12V2A) x2
    • Slim Cable (18M) x8
    • 4 Way Power Cable Splitter x2
    • Camera Bracket x8
    • Screw Set x8


    How to Connect

    Technical Specifications

    H.264 16CH DVR
    DVR Model KG-SHA116 ( 16CH )
    Video Compression H.264
    Video System NTSC / PAL
    Operation System Linux
    Video Input / Output BNC 16-channel / VGA 1-channel & BNC 2-channel
    Audio Input / Output BNC 4-channel / 1-channel
    Intercom 1-channel of line-in
    Audio Compression 8kHz*16bit ADPCM
    Display Frame Rate PAL: 400 fps / NTSC: 480 fps
    Playback Resolution NTSC: CIF(352x240), HD1(704x240), D1(704x480)PAL: CIF(352x288), HD1(704x288), D1(704x576)
    Recording Frame Rate PAL: 100fps@D1, 200fps@HD1, 400fps@CIFNTSC: 120fps@D1, 240fps@HD1, 480fps@CIF
    Recording Mode Always / schedule: motion detection, manual, sensor triggered
    Recording Pack Time 15/30/45/60mins file time selectable
    HDD Interface One removable HDD tray and one fixed HDD rack, support up to 2TB SATA HDD each
    Network Interface RJ45, 10M/100M
    Network Protocol Supports TCP/IP, DHCP,DDNS, PPPoE
    Network Function Supports to live view with IE (Internet Explorer) & with mobile phone
    USB2.0 USB mouse, USB disk (backup, upgrade)
    Playback Local: Playback 4 channels at the same timeNetwork: 1-channel
    Playback Search Date/time, file list
    Playback Mode PLAY / SLOW / FWD / Frame by frame
    Backup Backup via USB flash disk, USB HDD disk, USB CD/DVD-RW & Network
    PTZ Control Built-in RS485, support PELCO-P & PELCO-D
    Alarm Mode Motion Detection, Video loss, HDD loss, HDD full, Sensor triggered
    Power Supply DC 12V/5A
    Working Temperature 50°F to 104°F (10℃ to 40℃)

    Model Type IR Camera
    Image Sensor 1/3” Sony or 1/4" SHARP CCD  (*1)
    Effective Pixel PAL: 500(H)X582(V) ; NTSC:510(H)X492(V)
    Horizontal Resolution 420/480/520TV Line  (*1)
    IR Distance 10 or 20M  (*1)
    Video Output 1.0Vp-p. 75ohm (BNC)
    SIN Ratio >48dB
    Min Illumination 0 LUX /F1.2
    Lens Mount 3.6mm Lens
    Electronic Shutter PAL: 1/50-1/100.000sec ; NTSC: 1/60-1/100.000sec
    Weather Proof IP66
    Operating Temp -10° ~ 50°C
    Power Supply 12V DC, 200mA (IR ON)

    1. Recording capacity may vary, based on a 500GB hard drive, using the lowest recording quality settings with one camera.
    2. Internet and cell phone access require a router, Windows operating system, IE7 or higher and a broadband internet connection.
    3. The DVR is currently accessible on Windows Pro, Symbian and iPhone running on 3G networks
    4. Night vision range mentioned on specification is under ideal conditions. Objects at or beyond the range may be partially or completely obscured, depending on the camera position
    5. Do not recommend using the cameras in temperatures below 0 ℉(-17℃) or above 114 ℉(45.5℃)
    6. Do not recommend using the cameras in temperatures below 0 ℉(-17℃) or above 114 ℉(45.5℃)
    7. Audio Cameras not included.
