Synology DiskStation 1815+Ultra performance NAS

Synology DiskStation 1815+Ultra performance NAS
Synology DiskStation 1815+Ultra performance NAS
8 Drive Bay NAS, expandable up to 18 Bays, Intel Atom C2538 Quad Core 2.4GHz, 2GB DDR3 (Expandable up to 6 GB), 4xUSB 3.0, 2xeSATA, 4xGigabit LAN, Hot Swappable Drive Warranty: 3 years carry-in.
Price:  65,780

Installment Promo! Easy Monthly Payments.

Pay only P 6,194 a Month for 12 months.

Or pay only P 11,730 a Month for 6 months.

  • Installment promo is available for locally issued credit cards
  • Card holder must transact inside an Asianic store to avail of the installment

Ultra-performance NAS optimized for intensive tasks and encryption

Featuring a quad-core processor, hardware encryption engine, and flawless software integration, DS1815+ is a powerful, expandable 8-bay NAS server that delivers outstanding speed and accelerated data encryption. Easily scalable, the DS1815+ can be equipped with up to 6GB of DDR3 RAM and host up to 180TB of raw capacity with two Synology DX513 units.

Quad-core CPU for blazing-fast performance

DS1815+ is powered by a quad-core CPU running at 2.4 GHz. Combined with 2GB of DDR3 RAM (expandable to 6GB), it delivers blazing-fast performance over 450 MB/s reading and 412 MB/s writing.1 That much power makes it easy for DS1815+ to multitask and provide consistently high throughput to all connected clients.Image result for quad core cpu synology

Fast encrypted data transmission with AES-NI

Encrypting data is essential to a healthy security policy. Equipped with a dedicated hardware encryption engine, DS1815+ is the ideal digital locker for sensitive data; files and folders are encrypted on the fly without any perceived performance loss. DS1815+ delivers encrypted data transmission speeds over 450 MB/s reading and 190 MB/s writing.

Image result for synology Fast encrypted data transmission

Quad LAN ports for failover and Link Aggregation support

Equipped with four Ethernet ports featuring failover and Link Aggregation support, DS1815+ ensures continual network uptime even if LAN connection malfunction occurs on one port, reducing the chance of service disruption and costly downtime. Link Aggregation improves connection speeds beyond the limits of a single network cable or port.

Image result for synology quad lan ports

Robust scalability up to 180TB

As your data storage needs grow, DS1815+ can be connected to dedicated DX513 expansion units2 for additional storage on the fly, growing capacity with minimal effort. With two DX513 expansion units connected through specially designed eSATA connectors, raw capacity can be as high as 180TB3.

Image result for synology robust scalability up to 180TB

Easy installation, hassle-free maintenance

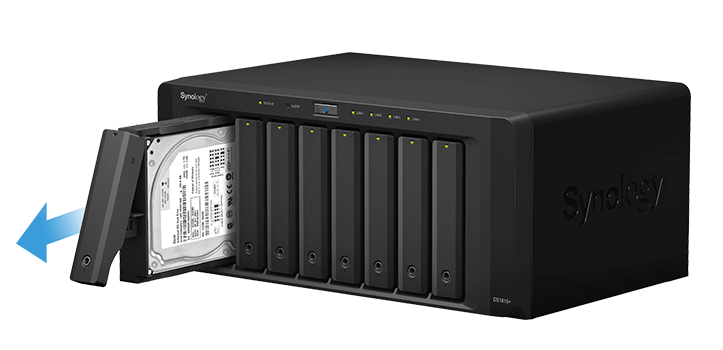

Easy installation and hot-swappable hard drive support ensures easy maintenance and continuous service uptime should a hard drive need replacement. In addition, DS1815+ incorporates a passive cooling design to reduce dependency on the dedicated processor cooling fan, thus mitigating any critical point of failure. When the system detects a fan failure, the built-in redundancy mechanism ensures continuous operation until the replacement fan arrives.

Image result for synology easy installation hassle free maintenance

USB 3.0 and eSATA ensure speedy transfers to external storage

DS1815+ boasts USB 3.0 and eSATA ports to connect to various kinds of external storage devices, while ensuring fast and efficient file transfer speeds. Support for USB 3.0 offers transfer speeds of up to 5 Gbps (about 10 times faster than USB 2.0), meaning it takes less time to transfer data to external hard drives, while also consuming less power.

Image result for synology usb 3.0 esata ports

Award winning OS - DiskStation Manager

Synology DiskStation Manager (DSM) is a sleek, browser-based operating system running on every DiskStation and RackStation, which makes managing your Synology NAS a breeze. Featuring an intuitive user interface, DSM makes accessing and sharing your data smarter and simpler. Synology's Package Center lets you download and install useful add-on packages designed specifically for individual or business needs, meaning you can enjoy more entertainment in your life or better productivity at work.Learn more

Image result for synology award winning OS-diskstation manager

Seamless storage solution for virtualization environments

DS1815+ provides seamless storage solutions for virtualization environments, including VMware, Citrix, and Microsoft Hyper-V. With VMware vSphere® & VAAI integration, DS1815+ helps offload specific storage operations and optimizes computation power in VMware environments. Windows ODX support speeds up data manipulation as the data transfer is offloaded. iSCSI also lets SMB users consolidate storage into data center storage arrays while providing hosts with the illusion of locally-attached disks. Learn more

Image result for synology seamless storage solution for virtualization

Fit into business environments easily

With the support of Windows AD, LDAP, and Domain Trust, DS1815+ enables seamless account integration. The User Home feature can automatically create a "home" folder for every user account to minimize the administrator's effort in repeatedly creating "home" folders for all accounts. Windows ACL support on DS1815+ allows IT administrators to fine tune access controls and set up privileges to files and folders on DS1815+ through the familiar Windows user interface. With compatibility for major protocols, DS1815+ can eliminate server configuration overhead and enhance IT administrators’ efficiency. Learn more

Image result for synology fit into business environment easily

Optimize storage management

With Synology's Storage Manager, DS1815+ allows for flexible storage deployment and utilization. You can optimize RAID configuration with Synology Hybrid RAID (SHR) while providing redundant data protection. Other features such as multiple volumes on single RAID and Global Hot Spare also greatly enhance management efficiency and fit deployment of any kind. Learn more

Synology CMS (Central Management System)

For enterprises with more than one Synology NAS server, CMS offers the flexibility and convenience for IT administrators to manage all of them from a single point of entry. Through a simple interface, you can obtain a clear overview on resource consumption and logs, helping you identify any issue right away. With group policies, CMS can do much more for your daily tasks. Once a NAS joins a group, it will automatically adopt its rules and behave as intended, without extra configuration. Learn more

Ensuring business continuity

Uninterrupted availability is a critical goal for all businesses. DS1815+ supports Synology High Availability (SHA) technology which combines an active and passive server into one cluster, the former always mirrored to the latter. The Heartbeat mechanism detects regular "heartbeats" between the two servers. If the main server encounters unexpected downtime, the passive server immediately takes over. With multiple LAN ports, DS1815+ also ensures redundancy in the event of unexpected network failure. Learn more

Effective backup solution

Synology DS1815+ can serve as a centralized backup target. Whether you are a Windows or Mac user, you can back up everything on your computer directly to Synology NAS using Cloud Station Backup. Whenever you modify a file, the changes are backed up to DS1815+ automatically. Mac users also enjoy native Apple® Time Machine support. You can also back up data from your DS1815+ to another DiskStation, rsync servers, external drives, or even Amazon® S3, Glacier cloud service, Microsoft Azure, SFR, and hicloud. Synology Hyper Backup allows you to schedule backup tasks and restore the server to any particular point in time, while minimizing storage consumption and processing time by saving only the specific data block that has been changed between versions. Learn more

Secure your data

DS1815+ offers advanced security measures to protect you from potential security holes. Security Advisor analyzes system settings, password strength, network preferences and removes any possible malware. AppArmor blocks malicious programs from accessing unauthorized system resources. You can also customize the trust level in Package Center to avoid installing packages from untrusted sources, safeguarding your NAS from unknown or tampered files. In addition, DS1815+ provides other security add-ons, such as AES encryption, 2-Step verification, IP block & allow list, Antivirus packages, firewall, and DoS attack prevention. Learn more

Technical Specifications:

CPU Model      : Intel Atom C2538

CPU Frequency : 2.4Ghz 64 bit


System Memory ; 2GB DDR3 x 1, 1 available, max up to 6GB,  + 4GB

External Ports : USB 2.0 x 1, USB 3.0 x 1

Drive Bays : 8

Max Drive Bays w/
Expansion unit : 18

Compatible Drive Type : 3.5" SATA III / SATA II HDD



Max Internal Raw Capacity : 80TB (10TB HDD x 8)

Max Raw Capacity w/
Expansion units : 180TB (10TB HDD x 18)

Max Single Volume Size : 108TB

Hot Swappable Drive : Yes

File System : External Drives (EXT 4, EXT 3, FAT, NTFS, HFS+ Read only with max. volume size 2TB)

Appearance : Size (H x W x D) 157mm x 340mm x 233mm

Weight :5.29Kgs

Others : RJ-45 1GbE LAN port x 2 (with Aggregation / Failover support)

Wake on LAN/WAN : Yes

System Fan : 120mm x 120mm x 2 units

Fan Speed Mode : Cool Mode; Quiet Mode

Easy Replacement Fan : Yes

Power Recovery ; Yes

Wireless Support : Dongle

Noise Level : 24.3 dB

Power Supply Unit : 250W Adapter

AC Input Power V : 100V to 240V AC

Power Frequency : 50/60Hz, Single Phase

Power Consumption : 45.88W (Access); 25.23W (HDD HIbernate)

British Thermal unit : 156.55 BTU/hr (Access) ; 86.09 BTU/hr (HDD Hibernate)

Dynamic DC Input      : 7-24V

DC Output      : 1A

Storage Management

Maximum Concurrent
     File Transfer : 512
with RAM expansion : 1500

Docker DSM

Maximum Docker
DSM Number : 10 Including 1 FREE License

Document Viewer : Yes

Download Station : Yes
Maximum Concurrent
Download Tasks : 80

exFAT Access (optional) : Yes

hiDrive Backup : Yes

MailPlus/ MailPlus Server : Yes

Free Email Accounts : 5 (Licenses required for additional accounts)

Recommended MailPlus
Client Number : Up to 150

Maximum Server
Performance : 362,000 emails per day, approx 11.7GB

Media Server : Yes

DLNA Certification : Yes

Office : Yes

Maximum Users : 400

Maximum Simultaneous
Editing user : 80

VPN Server : Yes

Maximum Connections : 20

Environment : RoHS Compliant

Packaging Content : Main Unit x 1
: Welcome Note x 1
: Accessory Pack x 1
: AC Power Cord x 1
: RJ 45 LAN Cable x 2

Optional Accessory : Remote
: Surveillance Device License Pack
: 4GB DDR3 RAM Module
: Expansion unit DX 213 x 2
: Expansion unit DX 512 x 2
: VS 360HD

Notes: *Performance figures could vary on different environments.
*The Max File System size (or the Max Volume size) doesn't equal to the Max Internal Capacity, which is limited by the aggregated space of installed drives.
