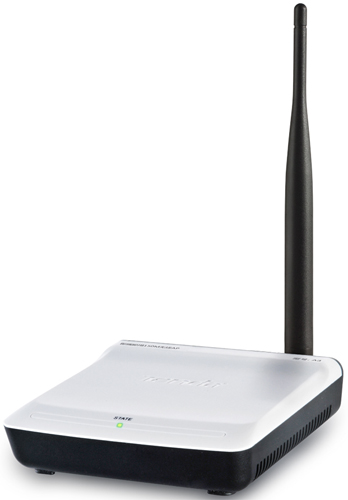

Tenda A3 150Mbps Wireless Range Extender

Features

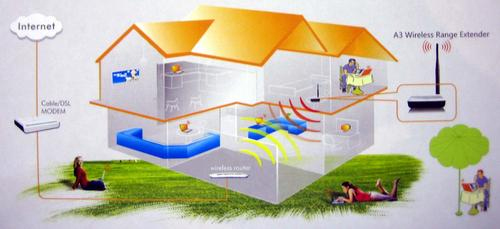

A3 is a mini 150Mbps plug & play wireless range extender that allows users to easily create a new wireless network by connecting to a router or extend coverage of an existing wireless network without any installation. It significantly outperforms previous-generation Wireless G by providing up to 150Mbps high speed network for Internet connection sharing, video streaming, or online gaming. It is also backward compatible with wireless g/b devices.the A3 includes a variety of features allowing it to serve as an access point, bridge with access point and is ideal for use in an existing home or small office wireless network. This range extender supports the latest wireless security WPA/WPA2-PSK to prevent unauthorized access. Delivering superior wireless performance, clarity, and coverage, the Wireless N Range Extender (A3) is an ideal solution for creating or extending a home or office wireless network.

N Speed
Delivers up to 150Mbps wireless speed, 8X faster than ordinary wireless G devices

Share Internet Wirelessly
Allows Internet broadband sharing and the freedom of wireless Internet usage throughout your home/office

Secured Connection
Advanced WPA/WPA2 protects your network from unauthorized access

Enhanced Wireless Range
Deliver better wireless performance and faster file transfers based on 802.11n technology

Backward-Compatible
compatible with 802.11b/g devices , you can upgrade your network to the latest N at lower cost

Easy setup
World's most intuitive utility interface guides you to install a secured network in 3 steps

Technical Specifications

Hardware Features
Standards	IEEE802.11n /b/g, IEEE802.3/3u
Band	2.4GHz
Wireless Rate	150Mbps
Interface & Speed	1*10/100Mbps Auto-negotiation RJ45 LAN port
Button	Reset
LED	Status
Antenna	1* 5dBi high gain omni-directional antenna
Power	9V==600mA
Dimensions (LxWxH,mm)	95*95.4*25
Wireless Features
Basic Features	Channel	11 channnels
	Channel Width	20Mhz, 40Mhz
	Transmit Power	RMS (no gap): B mode： 1/2/5.5/11Mbps : 18dbm， +/-1dbm G mode： 6/9Mbps : 18dbm，+/-1dbm 12/18Mbps : 17dbm，+/-1dbm 24/36Mbps : 16dbm，+/-1dbm 48/54Mbps : 15dbm，+/-1dbm N mode：(20/40M mode single antenna) MCS0/1_：7.2/15/　14.4/30 Mbps　：18dbm，+/-1dbm MCS2/3_：21.7/45/ 28.9/60 Mbps　：17dbm，+/-1dbm MCS4/5_：43.3/90/ 57.8/120 Mbps ：16dbm，+/-1dbm MCS6/7_：65/135/　72.2/150 Mbps ：15dbm，+/-1dbm
Working Modes	Wireless AP, WDS
Wireless Security	WPA-PSK, WPA2-PSK and WPA-PSK&WPA2-PSK
Security	MAC-based wireless access control
Bandwidth Control	WMM
Others
Operating Enviroment	Operating Temperature	0℃ ~ 40℃
	Storage Temperature	-30oC ~ 70oC
	Operating Humidity	10% ~ 90% RH non-condensing
	Storage Humidity	10% ~ 90% RH non-condensing
Minimum System Requirement	Computer with: Internet Explorer 5.5 or Firefox 1.0 Higher Network Adapter
Package Contents	A3 150Mbps Wireless Range Extender Power Adapter
Certificates	CE, RoHS, WEEE
