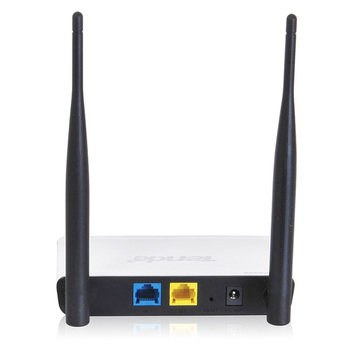

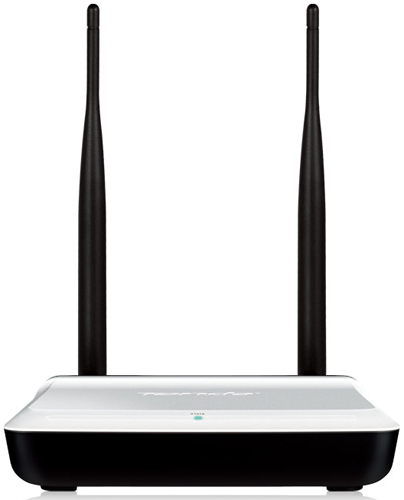

Tenda N30 300Mbps 2T2R 1Port Wireless Router

Tenda N30 300Mbps 2T2R 1Port Wireless Router
Tenda N30 300Mbps 2T2R 1Port Wireless Router
Wi-Fi compliant with IEEE 802.11n standard, speeds of up to 300Mbps, 2T2R Wireless-N Broadband Router, 1 10/100Mbps LAN Port; 1 10/100Mbps WAN Port; 2 X 5dBi Fixed Antennas, 2.4GHz, Static IP, DHCP, PPPoE, PPTP, L2TP, 802.1x Protocol; Port Bandwidth Control, Port Mapping, Port Trigger, WPS, WMM,
Price:  999

Features



The Tenda N30 delivers high performance and end-to-end wireless connectivity based on the latest wireless N technology which provides better wireless coverage and faster speeds than Wireless G. Sharing and streaming files has never been so easier with N30, because the built-in Quality of Service (QoS) engine allows users to choose which applications to be prioritized, and the N30 uses MIMO(Multiple in Multiple out) technology to leverage the power of multiple antennas and offer improved range and speed over 150Mbps router. At last, a quick and intuitive installation process makes it well suited for your home networking needs.

The N30 features multi-mode functionality you can utilize as a wireless router to create an 11n Wi-Fi network or easily use as an access point to add Wi-Fi to an existing wired network to provide a wireless connection anywhere desired. It also comes equipped with a built-in firewall that can protect every machine on a local network.

Complies with the IEEE 802.11n wireless standard. Create home or office wireless networks with up to 8x the speed and 6x the range of conventional 802.11g networks. Enjoy bandwidth intensive HD movie and music streaming, VoIP calls, online gaming and more, smoothly and lag-free without the worry of data loss over large areas.

It also supports priority of service where applications using a lot of bandwidth that are sensitive to interruptions such as voice and video are given priority in order to assure quality. By automatically prioritizing different types of network traffic, the N30 can enhance users' experiences for audio, video and voice applications over wireless networks

You can share a high-speed Internet connection, files, media, and more - instantly!
N3 provides a true plug and play solution to create a wireless network in just three steps via Web browser or setup wizard CD



Highlights:

● Wi-Fi compliant with IEEE 802.11n standard,speeds of up to 300Mbps
● Backwards compatible with IEEE 802.11g and IEEE 802.11b devices
● Supports WISP Connection
● Equips with 2* 5 dBi antennas for better coverage
● Supports WDS to seamlessly expand your wireless network
● Wi-Fi Multimedia (WMM) Quality of Service (QoS) supported
● Wireless encryption includes 64/128-bit WEP and WPA-PSK/WPA2-PSK


Technical Specifications

Hardware Features
Standards IEEE 802.3, IEEE 802.3u,IEEE802.11b,IEEE802.11g,IEEE802.11n
Band 2.4Ghz
Wireless Rate 300Mbps
Interface & Speed 1 WAN and 1 LAN interfaces
1 Power receptacle
Button 1 Reset
LED STATE
Antenna 2* 5dBi external antennas
Power 9V==600mA
Dimensions (LxWxH,mm) 133*87*24.76 mm (excluding antenna)
Wireless Features
Basic Features Channel 11 channels
Channel Width 20Mhz, 20Mhz/40Mhz
Transmit Power b Mode:
1, 2, 5.5, 11Mbps : 17dbm, 1dbm
g Mode:
6, 9Mbps : 16dbm,tolerance:1dbm
12, 18Mbps : 15.5dbm,tolerance:1dbm
24, 36Mbps : 15dbm,tolerance:1dbm
48, 54Mbps : 15dbm,tolerance:1dbm
n Mode:(Single antenna, 20/40M)
MCS0, 1_:7.2/15, 14.4/30 Mbps:16dbm,tolerance:1dbm
MCS2, 3_:21.7/45, ?28.9/60 Mbps:15.5dbm,tolerance:1dbm
MCS4, 5_:43.3/90, 57.8/120 Mbps :15dbm,tolerance:1dbm
MCS6, 7_:65/135, 72.2/150 Mbps :15dbm,tolerance:1dbm
Working Modes Wireless Router/ WDS/ WISP/ AP
Wireless Security WPS, WEP, WPA-PSK and WPA2-PSK
Software Features
Internet Connection Type PPPoE, DHCP, Static IP, PPTP, L2TP
DHCP Built-in DHCP server
Security Client Filter/MAC Address Filter/URL Filter
Bandwidth Control Yes
DDNS Dyndns / no-ip
Others
Operating Enviroment Operating Temperature 0℃ ~ 40℃
Storage Temperature -30oC ~70oC
Operating Humidity 10% ~90% RH
Storage Humidity 10% ~90% RH
Minimum System Requirement Computer with:
Microsoft IE, FireFox , or Safari browser
CD-ROM drive
Network adapter
Package Contents N30
Power Adapter
Quick Installation Guide
CD-ROM
Certificates FCC, CE, RoHS, WEEE
