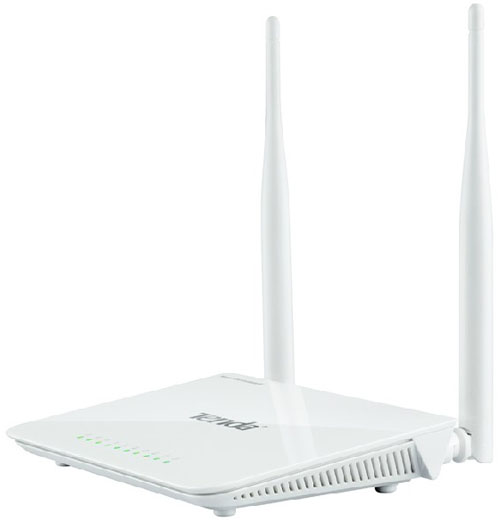

The Tenda N60 Concurrent Dual Band Wireless N600 Gigabit Router accommodates users looking for extreme wireless performance. Providing a combined wireless speed of up to 600Mbps (300+300) on both 2.4GHz and 5GHz, it is designed to meet needs of demanding applications, such as large file transfers, streaming HD video and multiplayer gaming. Simultaneous Dual band technology avoids interference and ensures top speeds and the greatest range, while Gigabit connectivity offers ultra-fast wired connections. In addition, the N60 provides premium features like USB sharing and printing and QoS. Delivering incredible wireless performance, network security, and coverage, the N60 is ideal for networking in large home and office.
>> Wireless N600 Concurrent Dual
Band Gigabit Router
>> Simultaneous Dual-Band N (2.4 & 5 GHz) doubles your network bandwidth
>> Maximum wireless speed up to 300 + 300 Mbps
>> Up to 2000Mbps wired speed for best connectivity experience
>> USB port for shared storage and printing
>> Quick to secure your network by pushing WPS button.
The N60 runs on 2.4GHz and 5GHz simultaneously, delivering a combined wireless speed of up to 600Mbps. What's more, Dual band technology helps to avoid signal interferences and maximize throughput, ideal for HD video streaming, high speed file transfers and wireless gaming.
The router allows users to create multiple logically separated wireless networks. By creating such virtual networks, your wireless network is protected while allowing visiting guests to access to Internet temporarily.
The N6 supports IP QoS (Quality of Service), allowing optimum utilization of bandwidth and offering bandwidth control over congestion, preventing bandwidth abuse. In this way, users of a small network receive committed and specific bandwidth, preventing non-critical applications from degrading network performance.
Features with IPTV service, the N6 enables you to enjoy online videos on your TV set via a set-top box while surfing Internet and other online activities.

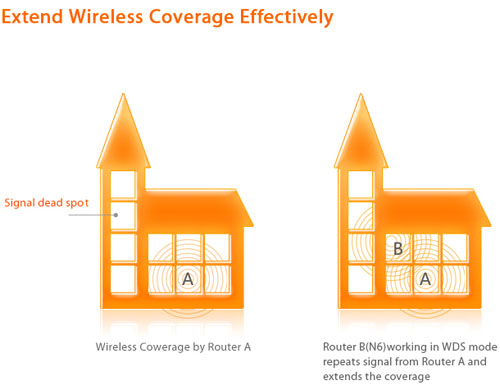

By utilizing Wireless Distribution System ( WDS) feature, N6 allows you to set up wireless communications between two or more routers, thus extending your wireless coverage to a farther distance. Any client devices within the range can easily connect to the network and access to Internet wirelessly.
Powered by the WiFi technology from leading chipmaker Broadcom, the N6 offers a more reliable and more stable wireless performance than others can do.
The N60's built-in USB port allows users to wirelessly access printers or USB mass storage devices from anywhere at home or office. Just plug the USB devices into the N60 and you’ll be ready to use them as though they were connected directly to your PC.

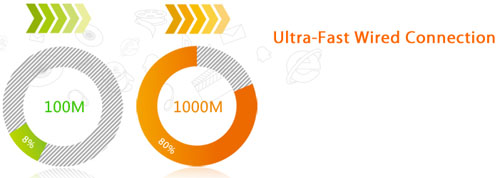

The Router provides Gigabit wired connectivity, which is 10 times faster than conventional Fast Ethernet connections. Ideal for high speed file transfers and streaming HD media.
|Standards||2.4GHz: IEEE802.11n, IEEE802.11g, IEEE 802.11b;
5.0GHz: IEEE 802.11n, IEEE 802.11a; IEEE802.3, IEEE802.3u, IEEE802.3ab

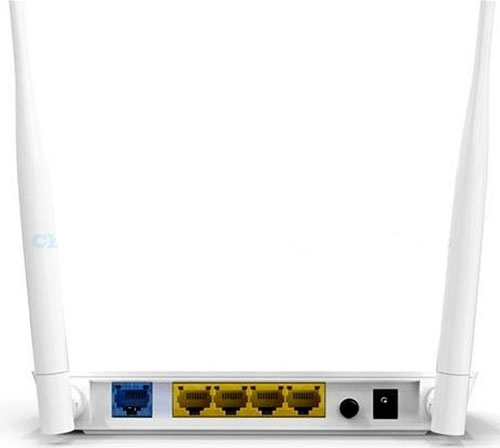

|Interface||1*10/100/1000M WAN port;
3*10/100/1000M LAN ports;
1*10/100/1000M IPTV port (function as a LAN port with IPTV disabled);
1*USB 2.0 port.
|Antenna||Internal high performance, omni-directional antenna|
|Power||Input: AC 100-240Vï½ž50/60Hz 0.3A;
Output: DC 12V1A.
|Temperature||Operating Humidity: 0â„ƒ ~ 40â„ƒ;
Storage Temperature: -40â„ƒ ~ 70â„ƒ.
Humidity:10% ~ 90% RH non-condensing;
Storage Humidity: 5% ~ 90%RH non-condensing.
|Dimensions (L*W*H) mm||171.6mm*111.2mm*25.5mm|
|LED||USB, WAN, IPTV, LAN (1, 2, 3), 2.4GHz, 5GHz, WPS, Power/SYS|
|Wireless Speed||2.4G: 300Mbps;
|Frequency||Works over both 2.4GHz and 5GHz bands concurrently|
|Basic Features||Wireless: Enable/Disable;
SSID Broadcast: Enable/Disable;
Band Option: 2.4GHz, 5GHz;
Channel-5GHz: 149, 153, 157, 161, 165;
Network Mode-2.4GHz: 11b/g/n mixed (default mode),11b/g mixed, 11b, 11g;
Network Mode-5GHz: 11a/n mixed (default mode),11a;
|Security||Wireless MAC Address Filter (Wireless Access
Wireless Security: Enable/Disable;
WPS fast encryption.
|Operating Mode||Wireless Router Mode;
Wireless AP Mode;
|Internet Connection Type||PPPoE;
|DHCP Server||DHCP Server;
DHCP Client List;
|Virtual Server||Port Forwarding;
|VPN Passthrough||PPTP/L2TP Passthrough|
|Other features||Flexible bandwidth control, P2P download control;
USB Sharable: storage & printing
Backup & Restore configurations
Firmware upgradeable via Web.
Quick Install Guide
|Factory Defaul Settings||IP Address: 192.168.0.1
Login User name/Password: admin/admin
|Certificates||FCC, CE, RoHS, WEEE|
