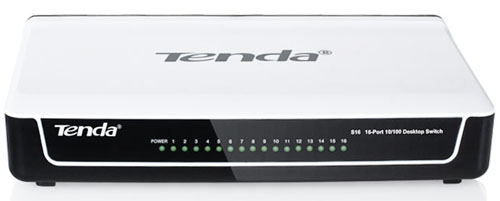

Tenda S16 16 Port Fast Ethernet Switch
Tenda S16 16 Port Fast Ethernet Switch
Flow control: IEEE802.3X in full duplex and Backpressure in half duplex mode, 16 10/100Mbps Auto-Negotiation RJ45 ports support 802.3 NWAY auto-negotiation, Auto MDI/MDIX is supported on all ports, Supports 4K MAC address learning and auto-aging, Adopts store-and-forwarding scheme
Price: ₱ 1,499
Features
S16 is a 16-port fast Ethernet switch that
supports Auto MDI/MDI-X, NWAY auto-negotiation and 4K MAC address
auto-learning/-aging. With the non-blocking switching fabric in full-duplex
mode, the maximum speed can reach up to 200 Mbps per port, totaling 3.2Gbps
of switching capacity. It minimizes bottlenecks, allowing your network to
run smoothly even during the heaviest volume of traffic. Furthermore, it is
a plug and play switch with stable performance and high forwarding rate,
especially for Internet bars, communities and small enterprises, etc.
● Flow control: IEEE802.3X in full duplex and Backpressure in half
duplex mode
● 16 10/100Mbps Auto-Negotiation RJ45 ports support 802.3 NWAY
auto-negotiation
● Auto MDI/MDIX is supported on all ports
● Supports 4K MAC address learning and auto-aging
● Adopts store-and-forwarding scheme
Technical Specifications
| Hardware Features | ||
| Standards | IEEE 802.3，IEEE 802.3u，IEEE 802.3x | |
| Interface | 16 RJ-45 Ports | |
| Speed | 10/100Mbps | |
| LED | POWER, LINK/ACT | |
| Power | AC100-240V 50/60Hz 0.3A DC 9V 1A |
|
| Dimensions (LxWxH,mm) | 218*135*41.2 | |
| General Features | ||
| Forwarding Scheme | Store-&-forward | |
| MAC Address Table | 4K | |
| MAC Address Learning | Yes | |
| Backplane Bandwidth | 3.2Gbps | |
| Others | ||
| Operating Enviroment | Operating Temperature | 0oC～40oC |
| Storage Temperature | -40oC～70oC | |
| Operating Humidity | 0%－90% RH (Non-condensing) | |
| Storage Humidity | 10%~90% RH (Non-condensing) | |
| Package Contents | S16/16-Port 10/100 Desktop Switch Power Adapter |
|
| Certificates | FCC CE Rohs | |
