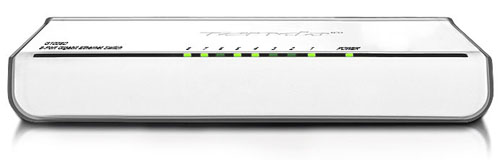

Tenda SG80 UnManaged 8 Port Gigabit Switch
Tenda SG80 UnManaged 8 Port Gigabit Switch
Complies with IEEE 802.3x full-duplex and flow control, NMA auto-negotiation, Provides 8(SG80) auto-negotiation 10/100/1000Mbps LAN ports, Auto MDI/MDIX, Non-blocking, Store-and-forward switching, Integrated 8,000 MAC address table, Mini plastic shell design
Price: ₱ 1,299
Features
The SG80 8 port Gigabit switch, They support auto MDI/MDIX and store-and-forward switching. The SG80 has a 16Gbps backplane bandwidth. Design and functionality make these switches excellent for small offices or work groups in need of high transmission rates, or they can be use very effectively in connecting two slower departmental switches in a larger network.
- Complies with IEEE 802.3x full-duplex and flow control
- NMA auto-negotiation
- Provides 8(SG80) auto-negotiation 10/100/1000Mbps LAN ports
- Auto MDI/MDIX
- Non-blocking
- Store-and-forward switching
- Integrated 8,000 MAC address table
- Mini plastic shell design
�
Technical Specifications
| Hardware Features | ||
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3 NWay Auto-negotiation | |
| Interface | 8 RJ45 Ports | |
| Speed | 1000Mbps | |
| LED | POWER/LAN | |
| Power | AC100-240V 50/60Hz DC9V 600mA |
|
| Dimensions (LxWxH,mm) | 139.95*90.12*31.7 | |
| General Features | ||
| Forwarding Scheme | Store-&-forward | |
| MAC Address Table | 8K | |
| MAC Address Learning | Yes | |
| Backplane Bandwidth | 16Gbps | |
| Others | ||
| Operating Enviroment | Operating Temperature | 0oC～45oC |
| Storage Temperature | -40oC～70oC | |
| Operating Humidity | 10%～95% RH non-condensing | |
| Storage Humidity | 5%～95% RH non-condensing | |
| Package Contents | SG80 8-Port Gigabit Ethernet Switch
One Power Adapter One User Guide |
|
| Certificates | FCC/CE/RoHS | |
