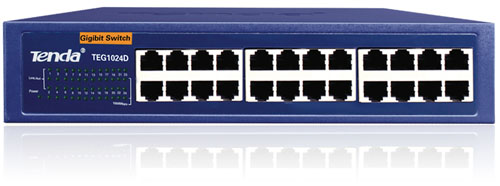

Tenda TEG1024G UnManaged 24 Port Gigabyte Switch
Tenda TEG1024G UnManaged 24 Port Gigabyte Switch
Complies with IEEE 802.3x full-duplex and flow control, NMA auto-negotiation, Supports UPnP, Provides 24 (TEG1024D) auto-negotiation 10/100/1000Mbps LAN ports, Supports auto MDI/MDIX, Non-blocking, Store-and-forward switching, Integrated 8,000 MAC address table, Provide status/diagnostic LED indicators, 11� metal case, 1U mounting kit included
Price: ₱ 4,999
Pay only P 470 a Month for 12 months.
Or pay only P 891 a Month for 6 months.
- Installment promo is available for locally issued credit cards
- Card holder must transact inside an Asianic store to avail of the installment
Features
The TEG1024G 24 port Gigabit switch. It support auto MDI/MDIX, store-and-forward switching, and have an 8,000 MAC address table. The TEG1024D has a 48Gbps backplane bandwidth. They have compact 11� metal cases that are convenient to put on a desk or shelf for a small office network.
- Complies with IEEE 802.3x full-duplex and flow control
- NMA auto-negotiation
- Supports UPnP
- Provides 24 (TEG1024G) auto-negotiation 10/100/1000Mbps LAN ports
- Supports auto MDI/MDIX
- Non-blocking
- Store-and-forward switching
- Integrated 8,000 MAC address table
- Provide status/diagnostic LED indicators
- 11� metal case
- 1U mounting kit included
�
Technical Specifications
| Hardware Features | ||
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x | |
| Interface | 24 RJ45 ports | |
| Speed | 10/100/1000Mbps | |
| LED | Power/24 Link/Act/24 1000Mbps indicators | |
| Power | 100～240V 12V 2.5A |
|
| Dimensions (LxWxH,mm) | 280*180*44 | |
| General Features | ||
| Forwarding Scheme | Store-&-forward | |
| MAC Address Table | 8K | |
| MAC Address Learning | Yes | |
| Backplane Bandwidth | 48Gbps | |
| Others | ||
| Operating Enviroment | Operating Temperature | 0℃~40℃ |
| Storage Temperature | -40oC~70oC | |
| Operating Humidity | 10%~90% RH no condensing | |
| Storage Humidity | 5%~90% RH no condensing | |
| Package Contents | One TEG1024D Gigabit Ethernet Mini
Desktop Switch User Manual (Hard-copy) One power Adapter |
|
| Certificates | CE, RoHS | |
