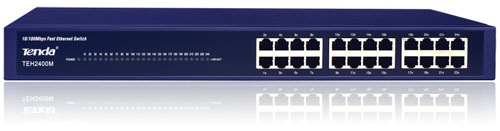

Tenda TEH2400M 24 Port Fast Ethernet Switch
Tenda TEH2400M 24 Port Fast Ethernet Switch
Supports IEEE802.3x full-duplex flow control and half-duplex backpressure flow control, Supports broadcast storm control and dynamic buffer area automatically allocating to realize network load balancing. 8K MAC address studying/renewing automatically
Price: ₱ 1,999
Features
TEH2400M offers 24 10/100Mbps Auto-Negotiation ports. All the ports,
supporting Auto MDI/MDIX, can either connect to the common terminal or
uplink to the other network devices to extend your network easily and
conveniently. It offers an easy, economical, high-performance, standard
solution method transferring to 100M network. With great flexibility,
easy-to-use, convenient installation, and super performance, it is ideal
choice for the medium/small enterprises and SOHOs.
◆Complies with IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet standards
◆24 10/100Mbps Auto-Negotiation ports
◆8K MAC address studying/renewing automatically
◆All the ports can automatically diagnosis half-/full-duplex modes
◆Dynamic buffer area automatically allocates to realize network load balancing and prevent the packing from losing
◆Automatically examine all kinds of error frames to ensure data packing right.
◆Automatically studies and sets up the MAC Address Table of connection devices
◆Equips with internal Switch Power for the metal chassis rack Switch
◆Complies with IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet standards
◆24 10/100Mbps Auto-Negotiation ports
◆8K MAC address studying/renewing automatically
◆All the ports can automatically diagnosis half-/full-duplex modes
◆Dynamic buffer area automatically allocates to realize network load balancing and prevent the packing from losing
◆Automatically examine all kinds of error frames to ensure data packing right.
◆Automatically studies and sets up the MAC Address Table of connection devices
◆Equips with internal Switch Power for the metal chassis rack Switch
Technical Specifications
| Hardware Features | ||
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x | |
| Interface | 24 RJ45 ports | |
| Speed | 10/100Mbps | |
| LED | Power/24 Link/Act indicators | |
| Power | AC100-240V 50/60Hz 0.2A DC 9V 1A |
|
| Dimensions (LxWxH,mm) | 440*123*44 | |
| General Features | ||
| Forwarding Scheme | Store-&-forward | |
| MAC Address Table | 8K | |
| MAC Address Learning | Yes | |
| Backplane Bandwidth | 4.8Gbps | |
| Others | ||
| Operating Enviroment | Operating Temperature | 0℃~40℃ |
| Storage Temperature | -40oC~70oC | |
| Operating Humidity | 0%－90% RH RH no condensing | |
| Storage Humidity | 10%~90% RH RH no condensing | |
| Package Contents | One TEH2400M 24-Port 10/100Mbps Ethernet
Switch User Manual (Hard-copy) One power cord 2 mounting ears 8 screws and 4 cushions |
|
| Certificates | CE, RoHS | |
