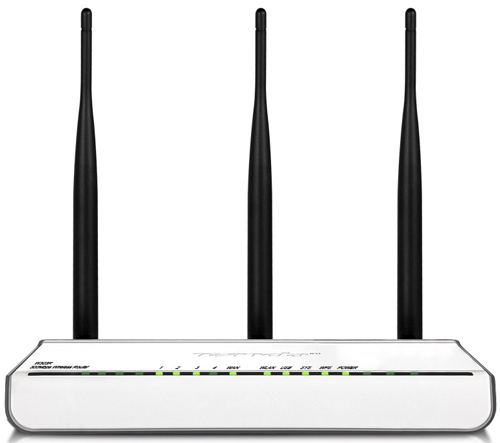

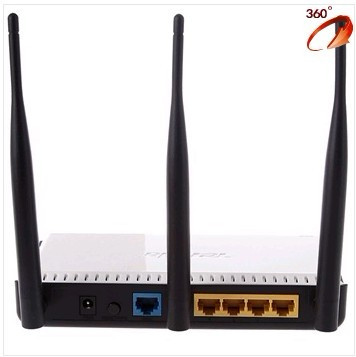

Tenda W303R 300Mbps Triple Antenna Wireless Router

Tenda W303R 300Mbps Triple Antenna Wireless Router
Tenda W303R 300Mbps Triple Antenna Wireless Router
Tenda W303R is a 300mbps 802.11n compliant wireless router that delivers up to 8x faster wireless speeds and 10x farther range than 802.11g while staying backward compatible with 802.11g/ b devices. Triple Antenna for secured connections. The W303R is ideal for sharing your Internet connection through out home or small office.
Price:  999

Features



W303R is a wireless easy-to-install Router that includes router, wireless AP, 4-port switch and firewall all in one. Based on 11N standard, with 3* 5dBi high gain antennas, it delivers up to 300Mbps wireless speed at farther distance and stays backward compatible with 11b/g devices.

W303R create a wireless network to share high-speed Internet access with computers, game consoles, and media players from greater distances around your home. It extends wireless coverage with WDS, smoothes wireless audio and video with WMM technology, allocates appropriate download rate for clients with QoS.

The W303R supports the latest wireless security features to help prevent unauthorized access, be it from over a wireless network or from the Internet. Support for WPA and WPA2 standards ensure that you will be able to use the best possible encryption, regardless of your client devices. In addition, the Wireless N 300 Router utilizes active firewalls to prevent potential attacks from across the Internet.

The TENDA Quick Router Setup Wizard quickly configures your new Wireless N 300 Router to get you up and running in minutes. Our Setup Wizard walks you step by step through the installation process to configure your Internet connection, wireless network settings and security, and everything else you need to get your network up and running. What's more, it provides super compatibility for mulitple PCs to share Internet access.



Complies with the latest 802.11n /g/b, IEEE802.3 and IEEE802.3u standards
Up to300Mbps wireless transmission rate
5dBi high gain  antenna delivers  signal at farther distance
1*10/100M auto-negotiation Ethernet port for WAN connection
4*10/100M auto-negotiation Ethernet ports for LAN connection
Supports Auto MDI/MDIX
Includes  router, wireless AP, 4-port switch and firewall all in one
Supports WPA-PSK, WPA2-PSK and WPA-PSK&WPA2-PSK encryption modes, etc
Supports xDSL/Cable MODEM, community broadband fixed IP and dynamic IP
Supports WPS one-touch encryption
Supports wireless WAN to connect to ISP's wireless hotpot for sharing Internet access wirelessly
Provides 2 SSIDs  and supports AP isolation
Supports hidden SSID and MAC-based wireless access control
Supports WDS to extend wireless coverage
Supports WMM to smooth your wireless audio and video
Supports SNTP, UPnP and DDNS
Provides syslog to record your AP's usage status




Technical Specifications

Hardware Features
Standards IEEE802.11n/g/b
IEEE802.3/3u
Band 2.4GHz
Wireless Rate 300Mbps
Interface & Speed 1*10/100M auto-negotiation Ethernet port for WAN connection
4*10/100M auto-negotiation Ethernet ports for LAN connection
Button WPS/Reset
LED POWER/SYS/WAN/WLAN/LAN/WPS
Antenna 3* 5dBi high gain antennas
Power 9V==1A
Dimensions (LxWxH,mm) 190*129.72*32.86
Wireless Features
Basic Features Channel 11 Channels
Channel Width 20Mhz, 40Mhz
Transmit Power RMS(no gap)ï¼›
B mode:
1/2/5.5/11Mbps : 17dbm, +2/-1dbm
G mode:
6/9Mbps  : 17dbm,+2/-1dbm
12/18Mbps : 16dbm,+2/-1dbm
24/36Mbps : 16dbm,+2/-1dbm
48/54Mbps : 15dbm,+2/-1dbm
N mode:(20/40Mmode single antenna)
2.4GHz
MCS0/1_:7.2/15/ 14.4/30 Mbps :17dbm,+2/-1dbm
MCS2/3_:21.7/45/ 28.9/60 Mbps :16dbm,+2/-1dbm
MCS4/5_:43.3/90/ 57.8/120 Mbps :16dbm,+2/-1dbm
MCS6/7_:65/135/ 72.2/150 Mbps :15dbm,+2/-1dbm
Working Modes Router, Wireless AP
Wireless Security WPA-PSK/WPA2-PSK/WPA-PSK&WPA2-PSK and WPS one-touch encryptions
Software Features
Internet Connection Type PPPoE/Dynamic/Static IP
DHCP DHCP Server
Security Wireless Client Filter, Port/URL/MAC address filter
Bandwidth Control WMM
DDNS DNS only
Others
Operating Enviroment Operating Temperature 0℃ ~ 40℃
Storage Temperature -40oC ~ 85oC
Operating Humidity 10% ~ 90% RH non-condensing
Storage Humidity 10% ~ 90% RH non-condensing
Minimum System Requirement Computer with:
Internet Explorer 5.5 or Firefox 1.0 Higher
CD-ROM Drive
Network Adapter
Package Contents W303R 300M Wireless N Superb Range Router
Quick Installation Guide
CD-ROM (User Guide and setup wizard included)
Power Adapter
Certificates FCC/CE/RoHS
