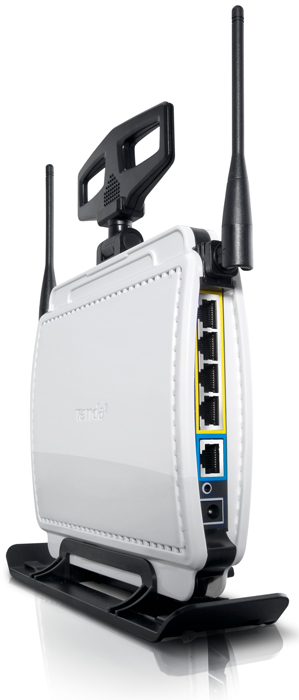

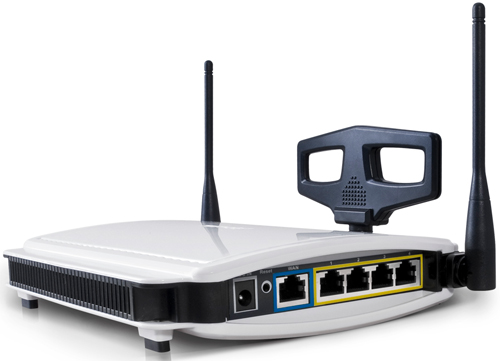

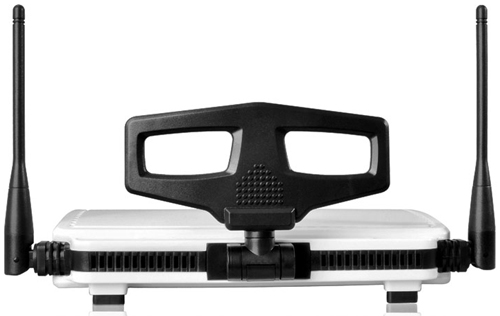

Tenda W330R 300Mbps Gigabit Wireless Router
Features
The W330R is a 300Mbps Wireless-N router, wireless access point, four-port Gigabit switch, and firewall all-in-one.
Utilizing advanced MIMO technology in the IEEE 802.11n (draft 2.0) standard, WLAN range is double that of 802.11g products. The W330R also provides WDS (Wireless Distribution System), enabling the bridging of other wireless routers and extending the wireless coverage.
Plenty of features are bundled to better secure and manage a network, including; port and MAC address filters, WPS (Wi-Fi Protected Setup), and the ability to disable SSID broadcast. Management can be conveniently accomplished from anywhere through a local/remote Web management interface, and a Tenda-developed setup wizard makes installation easy for anyone.
The W330R is the ideal choice for smallor home offices in search of a fast,
secure, easy-to-use, and feature-rich wireless network, with the expandability
of a Gigabit switch.
- Wireless AP, Router, 4-port Gigabit Switch, and Firewall
- Complies with IEEE 802.11n (Draft 2.0), IEEE 802.11g, and IEEE 802.11b standards
- MIMO technology utilizes reflection signal to greatly increase the transmission strength and range
- Supports up to 6 times the transmission rate and double the range of 802.11g products
- Provides 300Mbps transmission rates
- Supports WMM for improved audio and video signals
- Meets 64/128-bit WEP, WPA, and WPA2 security standards
- Supports 802.1x security authentication standard
- WPS (PBC and PIN) enabled device
- Setup wizard for fast and easy configurations
- Supports remote/local web management
- Supports wireless roaming technology for highly efficient connections
- Supports wireless SSID stealth mode and a MAC address access control
- Supports access control of up to 30 entries of MAC addresses
- Supports Auto MDI/MDIX
- Provides a router system log
- Supports MAC address filtering, IP address filtering, URL filtering, and NAT rules
- Supports UPnP and DDNS
- Supports DHCP server/client
- Supports SNTP
- Supports virtual server and DMZ host
- Supports channel auto-selection
- Supports WDS
Technical Specifications
| Hardware Features | ||
| Standards | 802.11n, 802.11g, 802.11b, 802.3, 802.3u,802.3ab | |
| Band | 2.4Ghz | |
| Wireless Rate | 300Mbps | |
| Interface & Speed | 1 10/100/1000M RJ-45
WAN port 4 10/100/1000Mbps RJ-45 LAN ports |
|
| Button | Reset | |
| LED | POWER/SYS/WPS/WLAN/LAN/WAN | |
| Antenna | 3*2.5dBi non-detachable, external, omni-directional antennas | |
| Power | AC 110~240V AC 9V/1.2A |
|
| Dimensions (LxWxH,mm) | 242*189*36.8 | |
| Wireless Features | ||
| Basic Features | Channel | 11 channels |
| Channel Width | 20Mhz, 40Mhz | |
| Transmit Power | 18dbm | |
| Working Modes | Wireless router/ wireless AP | |
| Wireless Security | 64/128-bit WEP, WPA, WPA2 | |
| Software Features | ||
| Internet Connection Type | PPPoE/Dynamic/Static IP | |
| DHCP | Built-in DHCP server | |
| Security | MAC/IP address filter, URL filter | |
| Bandwidth Control | WMM | |
| DDNS | Yes | |
| Others | ||
| Operating Enviroment | Operating Temperature | 0℃ ~ 40℃ |
| Storage Temperature | -40oC ~ 70oC | |
| Operating Humidity | 10% ~ 90% RH non-condensing | |
| Storage Humidity | 5% ~ 90% RH non-condensing | |
| Minimum System Requirement | Computer with: Internet Explorer 5.5 or Firefox 1.0 Higher CD Drive Network Adapter Windows 98SE |
|
| Package Contents | W330R Wireless-N Broadband Router Power Adapter Quick Installation Guide One Software CD (User Guide and Setup Wizard included) |
|
| Certificates | FCC, CE, RoHS, WEEE | |
