TP-Link Archer T9E Wireless Dual Band PCI Express Adapter
TP-Link Archer T9E Wireless Dual Band PCI Express Adapter
AC1900 Wi-Fi PCI Express Adapter, 1300Mbps at 5GHz + 600Mbps at 2.4GHz, Beamforming
Price: ₱ 3,990
Pay only P 375 a Month for 12 months.
Or pay only P 711 a Month for 6 months.
- Installment promo is available for locally issued credit cards
- Card holder must transact inside an Asianic store to avail of the installment
Archer T9E
- Easy Installation – Upgrade your desktop system easily by plugging the Archer T9E Wi-Fi adapter into an available PCI-E slot.
- Hi-Speed Wi-Fi – Up to 1900Mbps Wi-Fi speeds (1300Mbps on 5GHz band or 600Mpbs on 2.4GHz band)*
- 802.11ac Dual Band – 3 times faster than the 802.11n standard, perfect for hi-intensity network usage*
- Backward Compatibility – With support for 802.11 a/b/g/n standards
- Beamforming Technology – Receives more directional Wi-Fi signals, improving speed and reliability
- Ultimate Range – 3 external antennas ensure a greater range of Wi-Fi connection and stability

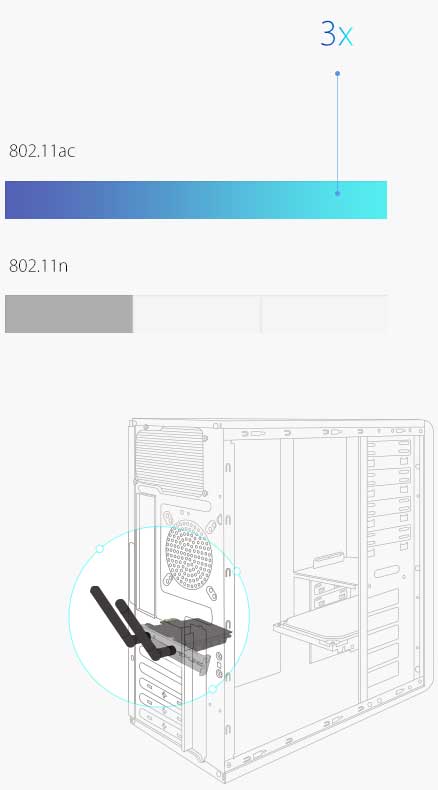

802.11ac - The Next Generation of Wi-Fi
TP-LINK's Archer T9E supports the next generation Wi-Fi standard - IEEE 802.11ac, offering transfer rates that are 3 times faster than wireless N speeds. Easily upgrade your desktop system by simply slotting the Wi-Fi adapter into an available PCI-E slot.
AC1900 – Selectable Dual Band Speeds 1300/600Mbps
The Archer T9E provides high-speed Wi-Fi of up to 1300Mbps over 5GHz, perfect for HD video streaming and lag-free online gaming. Additionally, the 2.4GHz 600Mbps Wi-Fi band is ideal for standard network/internet usage such as web surfing.
Beamforming Technology for Efficient Wi-Fi
The Archer T9E utilizes Beamforming technology, which is able to receive greater directional Wi-Fi signals, enhancing the reliability and stability of wireless connections.
Heat Sink for Better Stability
The Heat Sink helps to dissipate heat generated by the adapter, which in turn increases performance and improves stability. What’s more, lower temperatures ensure an increased adapter lifespan.
Technical Specifications
HARDWARE FEATURES
Interface : PCI Express
Dimensions ( W x D x H ) : 4.5 × 4.8 × 0.8 in. (115.2 × 120.8 × 21.5 mm)
Antenna Type : Omni Directional
WIRELESS FEATURES
Wireless Standards : IEEE 802.11ac, IEEE 802.11a,
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency : 5GHz
2.4GHz
Signal Rate : 5GHz
11ac: Up to 1300Mbps(dynamic)
11n: Up to 150Mbps(dynamic)
11a: Up to 54Mbps(dynamic)
2.4GHz
11n: Up to 600Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity : 5GHz：
11a 6Mbps: -85dBm
11a 54Mbps: -68dBm
11ac HT20: -59dBm
11ac HT40: -54dBm
11ac HT80: -51dBm
2.4GHz:
11b 11Mbps: -80dBm
11g 54Mbps: -68dBm
11n HT20: -64dBm
11n HT40: -61dBm
Transmit Power : <20dBm (EIRP)
Wireless Modes : Ad-Hoc / Infrastructure mode
Wireless Security : Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology : DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
OTHERS
Certification : FCC, RoHS
Package Contents : Wireless Adapter Archer T9E
Resource CD
Quick Installation Guide
System Requirements : Windows 8.1 (32/64bits), Windows 8 (32/64bits), Windows 7 (32/64bits),
Windows XP(32/64bits)
Environment : Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
